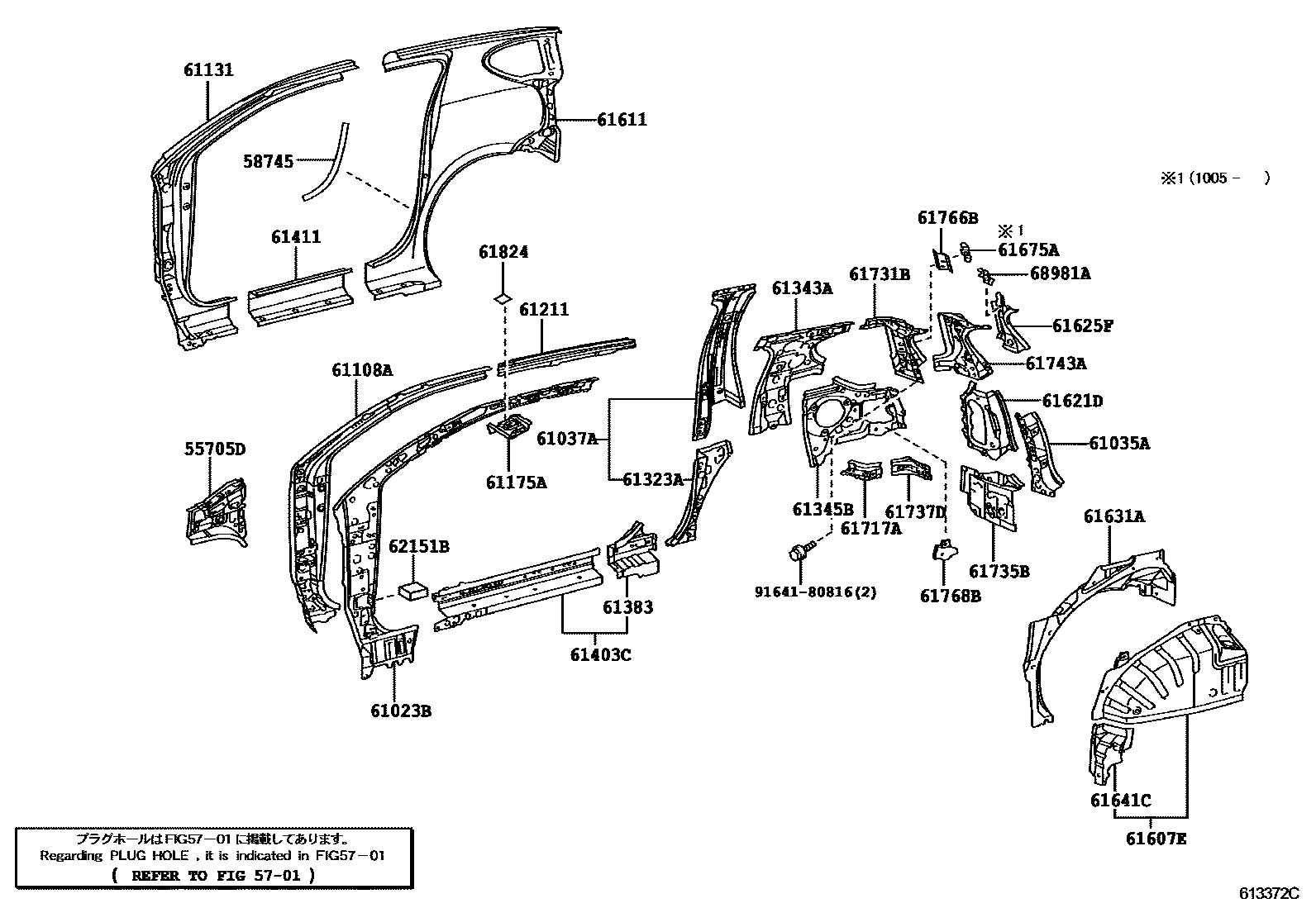

SIDE MEMBER
55705DPANEL SUB-ASSY, COWL TOP SIDE, RH,
5701HOLE PLUG
58745PROTECTOR, QUARTER PANEL, FRONT RH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61035AREINFORCEMENT SUB-ASSY, BACK DOOR OPENING, RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH
61211RAIL, ROOF SIDE, OUTER RH
61323AREINFORCEMENT, CENTER BODY PILLAR, LOWER RH
61343APILLAR, CENTER BODY, INNER RH
61345BPILLAR, CENTER BODY, INNER LOWER RH
61383EXTENSION, CENTER BODY PILLAR, OUTER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61411PANEL, ROCKER, OUTER RH
61607EPANEL, QUARTER WHEEL HOUSE, INNER RH
61611PANEL, QUARTER, RH
61621DTROUGH, BACK DOOR OPENING, RH
61625FEXTENSION, QUARTER PANEL, UPPER RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61675AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH
61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH
61731BPANEL, ROOF SIDE, INNER RH
61735BEXTENSION, QUARTER PANEL, INNER RH
61737DREINFORCEMENT, ROOF SIDE, INNER RH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61824PLATE, NOISE CONTROL, NO.1
62151BPAD, COWL SIDE SILENCER
68981ARETAINER, BACK DOOR STAY, RH
9164180816
main91641-80816
34 parts on this diagram · 2 diagrams in section
