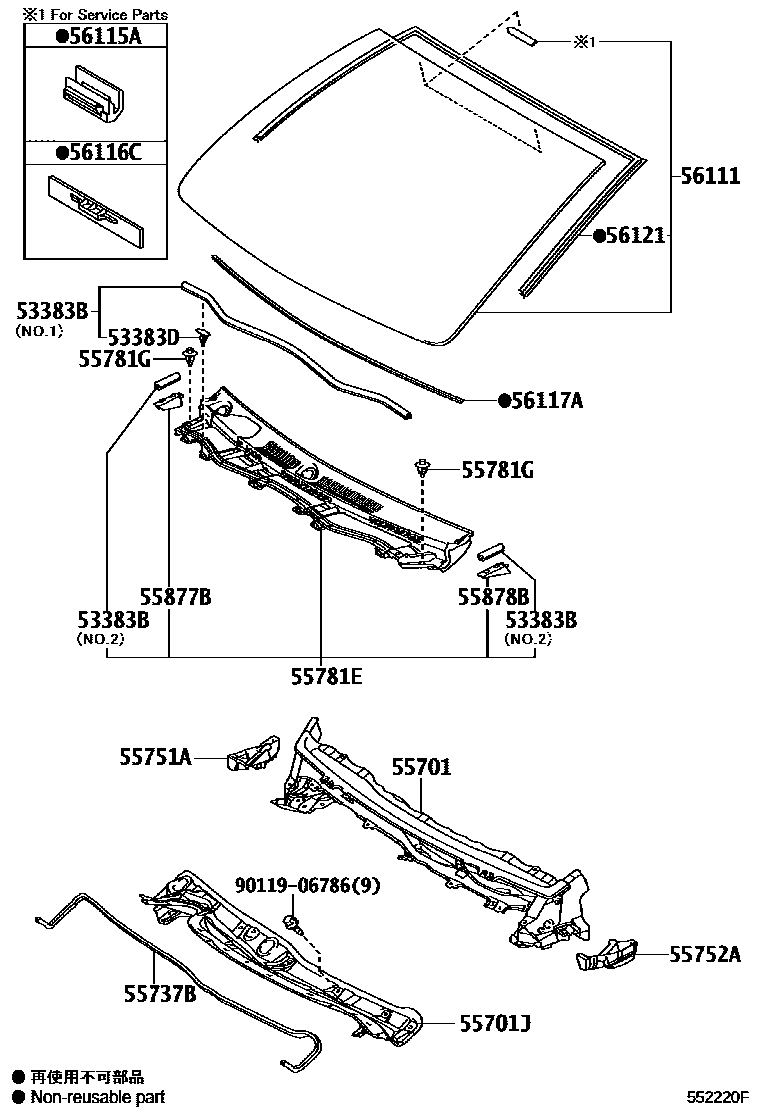

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-74010iKGJ10,NGJ10,NUJ10200811-201405

NO.1

main53383-74020×2iKGJ10,NGJ10,NUJ10200811-201405

NO.2

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×6iKGJ10,NGJ10,NUJ10200811-201405

55701PANEL SUB-ASSY, COWL

main55700-74010iKGJ10,NGJ10,NUJ10..LHD200811-201007

main55700-74011iKGJ10,NGJ10,NUJ10..LHD201008-201405

main55700-74020iKGJ10,NGJ10,NUJ10..RHD200811-201405

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-74010iKGJ10,NGJ10,NUJ10..LHD200811-201405

main55701-74020iKGJ10,NGJ10,NUJ10..RHD200811-201405

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-74010iKGJ10,NGJ10,NUJ10200811-201302

main55737-74030iKGJ10,NGJ10201303-201405

55751ASHIELD, COWL VENTILATOR SPLASH, RH

main55751-74010iKGJ10,NGJ10,NUJ10200811-201405

55752ASHIELD, COWL VENTILATOR SPLASH, LH

main55752-74010iKGJ10,NGJ10,NUJ10200811-201405

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-74020iKGJ10,NGJ10,NUJ10..RHD200811-201405

main55708-74030supersedes 55708-74010iKGJ10,NGJ10,NUJ10..LHD200811-201405

COLD AREA SPEC(A RANK); COLD AREA SPEC(S RANK)

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0×2iKGJ10,NGJ10,NUJ10200811-201405

BLACK

55877BCOVER, COWL VENT, RH

main55877-74010iKGJ10,NGJ10,NUJ10200811-201405

55878BCOVER, COWL VENT, LH

main55878-74010iKGJ10,NGJ10,NUJ10200811-201405

56111GLASS, WINDSHIELD

main56101-74050supersedes 56101-74010iNGJ10..RHD201205-201405

*LAM,T=4.56,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iKGJ10,NGJ10,NUJ10200811-201405

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iKGJ10,NGJ10,NUJ10200811-201405

56117ADAM, WINDOW GLASS ADHESIVE

main56117-74010iKGJ10,NGJ10,NUJ10; KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC200811-201405

L=1002; L=1002,FRONT AIR CONDITIONER-AUTO

56121WEATHERSTRIP, WINDSHIELD

main56121-74010iKGJ10,NGJ10,NUJ10200811-201405

9011906786

main90119-06786

17 parts on this diagram · 1 diagram in section
