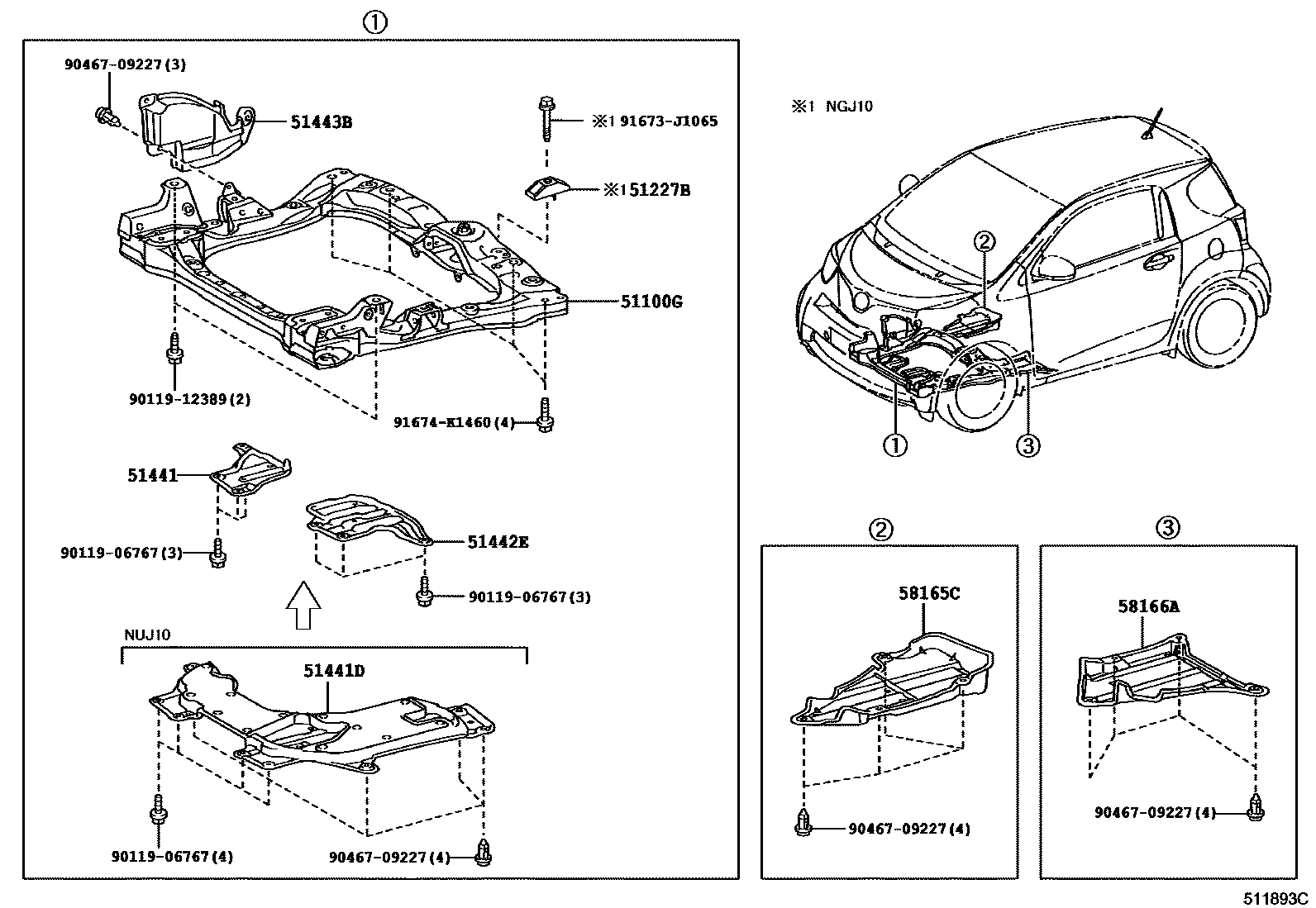

SUSPENSION CROSSMEMBER & UNDER COVER

51100GFRAME ASSY, FRONT

main51100-74020iKGJ10,NGJ10,NUJ10200811-201004

main51100-74021iKGJ10,NGJ10,NUJ10201005-201210

main51100-74022iKGJ10,NGJ10201211-201405

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-74010iNGJ10200905-201405

51441COVER, ENGINE UNDER, NO.1

main51441-74020iKGJ10200811-201405

51441DCOVER, ENGINE UNDER

main51410-74010iNUJ10..RHD200811-201003

51442ECOVER, ENGINE UNDER, NO.2

main51442-74010iKGJ10,NGJ10200811-201405

51443BCOVER, ENGINE UNDER, NO.3

main51443-74010iKGJ10,NGJ10,NUJ10200811-201007

main51443-74011iKGJ10,NGJ10,NUJ10201007-201405

58165CCOVER, FRONT FLOOR, RH

main58165-74010iKGJ10,NGJ10,NUJ10200811-201405

58166ACOVER, FRONT FLOOR, LH

main58166-74010iKGJ10,NGJ10,NUJ10200811-201405

9011906767

main90119-06767

9011912389

main90119-12389

9046709227

main90467-09227

91673J1065

main91673-J1065

91674K1460

main91674-K1460

13 parts on this diagram · 1 diagram in section
