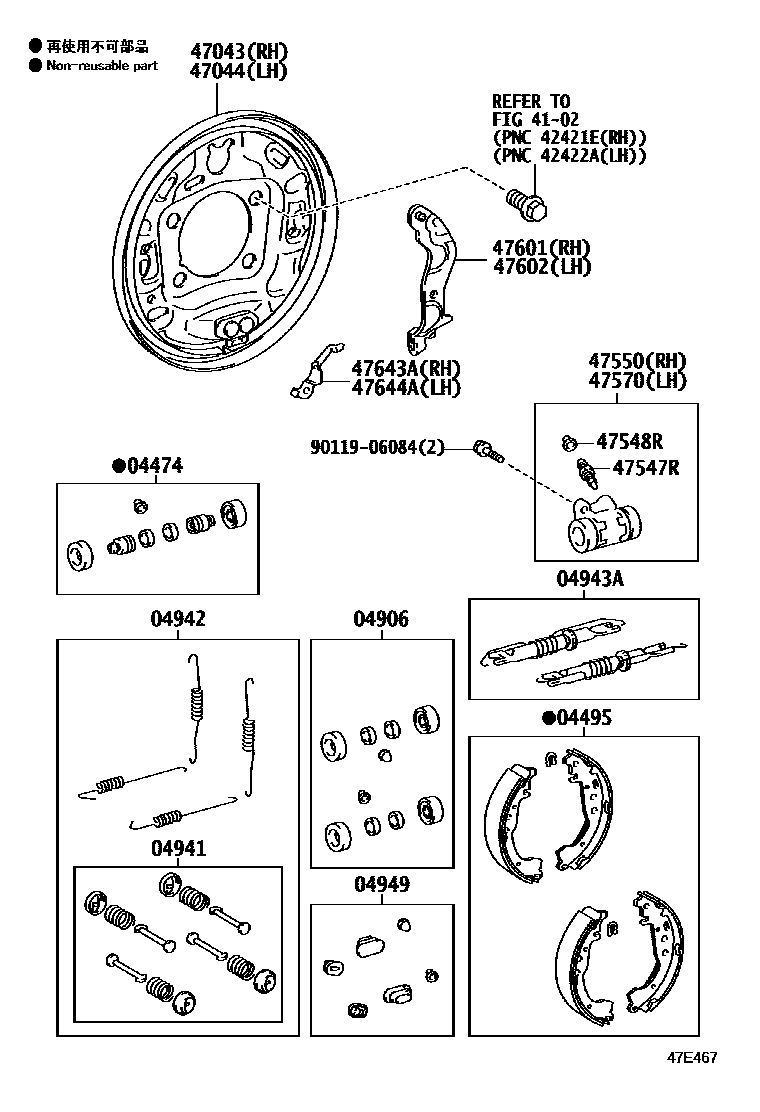

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-52010×2iKGJ10,NGJ10..RHD200811-201005

04495SHOE KIT, REAR BRAKE

main04495-74020iKGJ10,NGJ10..RHD200811-201005

MARK NBK LN521

main04495-74040iKGJ10,NGJ10,NUJ10..LHD201009-201405

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-52010iKGJ10,NGJ10..RHD200811-201005

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-52010iKGJ10,NGJ10..RHD200811-201005

04942SPRING KIT, REAR BRAKE

main04942-74010iKGJ10,NGJ10..RHD200811-201005

04943ASTRUT KIT, REAR BRAKE

main04943-74010iKGJ10,NGJ10..RHD200811-201005

04949PLUG KIT, REAR BRAKE

main04949-74010iKGJ10,NGJ10..RHD200811-201005

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-74010iKGJ10,NGJ10..RHD200811-201005

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-74010iKGJ10,NGJ10..RHD200811-201005

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iKGJ10,NGJ10..RHD200811-201005

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iKGJ10,NGJ10..RHD200811-201005

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-52011iKGJ10,NGJ10..RHD200811-201005

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-52011iKGJ10,NGJ10..RHD200811-201005

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-74010iKGJ10,NGJ10..RHD200811-201005

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-74010iKGJ10,NGJ10..RHD200811-201005

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-74010iKGJ10,NGJ10..RHD200811-201005

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-74010iKGJ10,NGJ10..RHD200811-201005

9011906084

main90119-06084
