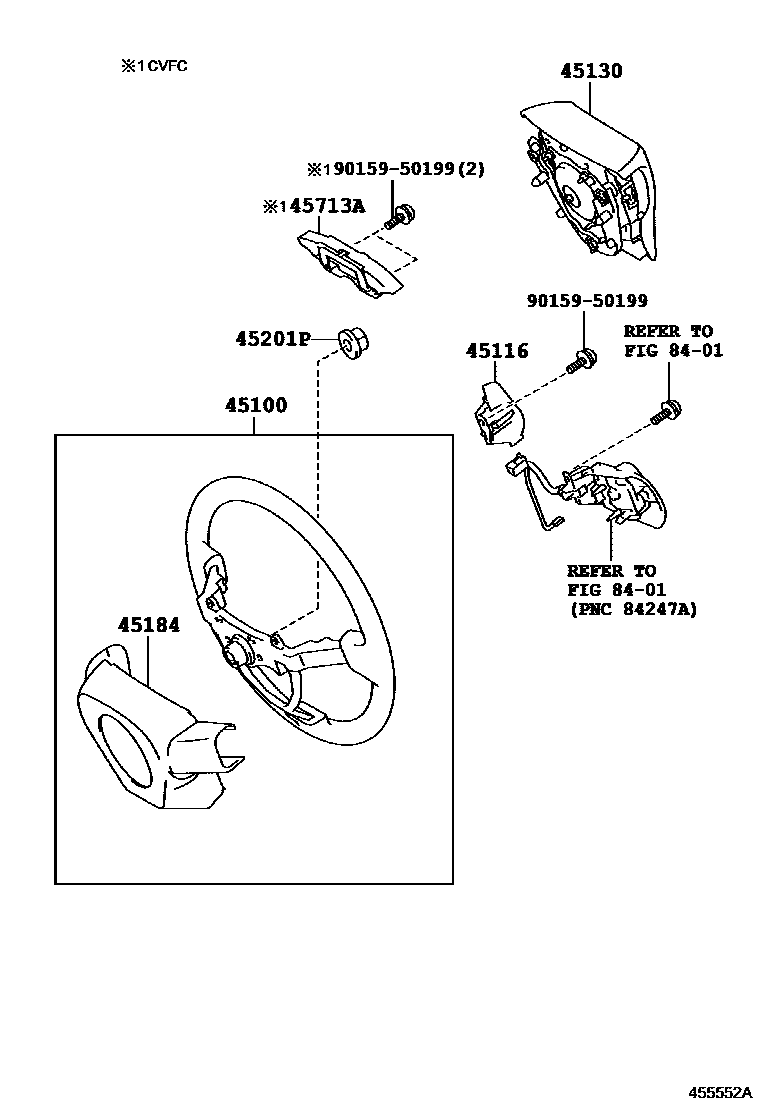

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-74020-C0iKGJ10,NGJ10,NUJ10200811-201002

3-SPOKE,LEATHER,BLACK,TRIM4#,5#

sub45100-74021

main45100-74021-C0iKGJ10..R201003-201405

3-SPOKE,LEATHER,BLACK,TRIM1#,4#,5#,7#

main45100-74021-C0iKGJ10..R201003-201405

3-SPOKE,LEATHER,BLACK,TRIM1#,4#,5#,7#,9#

main45100-74021-C0iNGJ10..R201205-201405

3-SPOKE,LEATHER,BLACK,TRIM1#,7#,9#

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-74010iKGJ10;NUJ10..LHD200811-201003

main45116-74010-C1iKGJ10..R200905-201405

BLACK,TRIM1#,4#,7#

sub45116-74010

main45116-74010-C1iKGJ10..R200905-201405

BLACK,TRIM1#,4#,7#,9#

sub45116-74010

main45116-74010-C1iNGJ10..R201205-201405

BLACK,TRIM1#,7#,9#

sub45116-74010

45130BUTTON ASSY, HORN

main45130-74020-C0iKGJ10..R200811-201005

BLACK,TRIM1#,4#,5#,7#,9#

main45130-74020-C0iKGJ10..R200811-201005

BLACK,TRIM1#,4#,5#,7#

main45130-74021-C0iNGJ10..N;KGJ10,NUJ10201005-201405

BLACK,TRIM1#,4#,5#,7#,9#

main45130-74021-C0iNGJ10..R201205-201405

BLACK,TRIM1#,7#,9#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-74010-C0iKGJ10,NGJ10,NUJ10200811-201003

BLACK,TRIM4#,5#

main45184-74010-C0iKGJ10..R201003-201405

BLACK,TRIM1#,4#,5#,7#

main45184-74010-C0iKGJ10..R201003-201405

BLACK,TRIM1#,4#,5#,7#,9#

main45184-74010-C0iNGJ10..R201205-201405

BLACK,TRIM1#,7#,9#

main45184-74010-C0iNGJ10..R201205-201405

STEERING WHEEL-3-SPOKE LEATHER,BLACK,TRIM1#,7#

45201PNUT, STEERING WHEEL SET

main90179-12071iKGJ10,NGJ10,NUJ10200811-201405

45713ADAMPER, STEERING SHAKE

main45713-74010iKGJ10..CVFC200811-201405

main45713-74020iNGJ10..CVFC200910-201405

8401

9015950199

main90159-50199

8 parts on this diagram · 1 diagram in section
