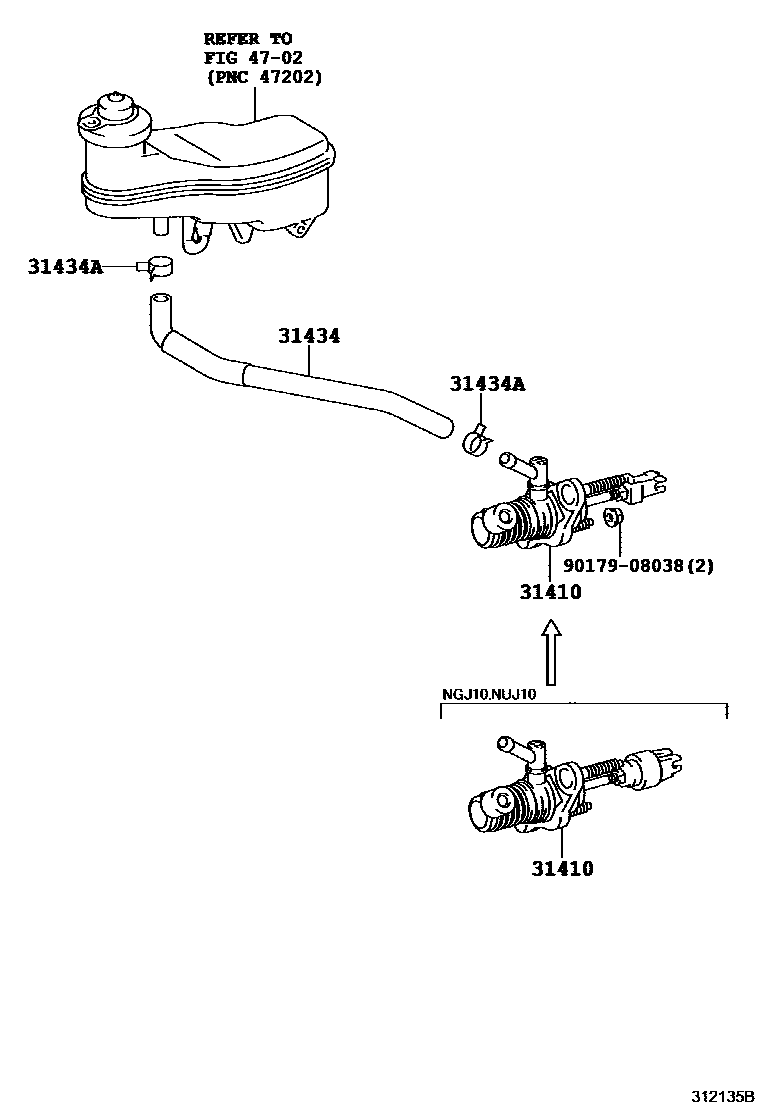

CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-74010iKGJ10..LHD..5F200811-201405

main31420-74020iNUJ10..LHD200811-201205

main31420-74030iKGJ10..RHD..5F200811-201405

main31420-74040iNUJ10..RHD200811-201003

main31420-74050iNGJ10..LHD..6F200905-201405

main31420-74060iNGJ10..RHD..6F200905-201405

31434TUBE, CLUTCH RESERVOIR

main31434-74010iKGJ10,NGJ10,NUJ10..LHD..MTM200811-201405

main31434-74020iKGJ10,NGJ10,NUJ10..RHD..MTM200811-201405

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96136-41801×2iKGJ10,NGJ10,NUJ10..MTM200811-201405

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908038

main90179-08038

5 parts on this diagram · 2 diagrams in section
