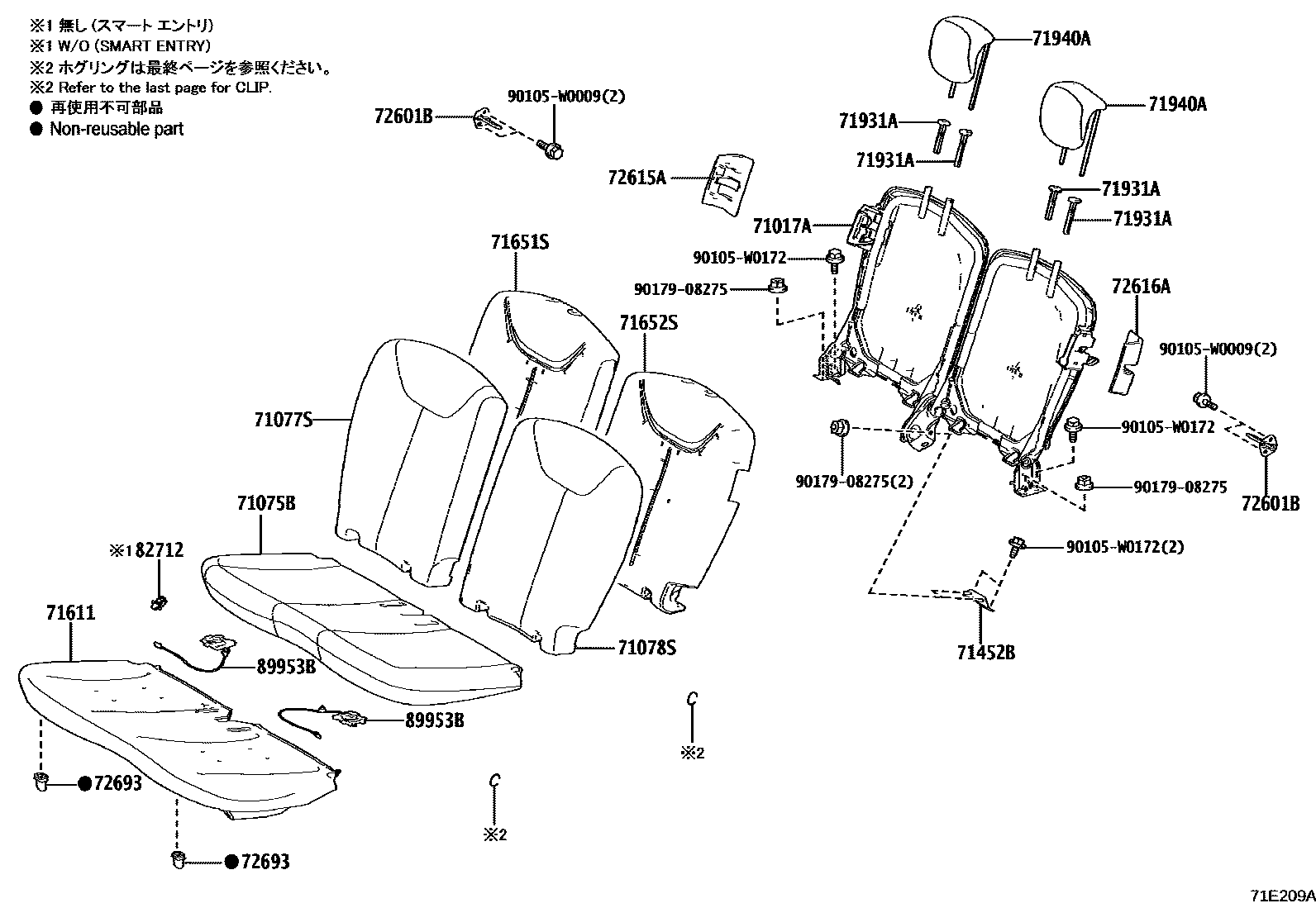

REAR SEAT & SEAT TRACK
71017AFRAME SUB-ASSY, REAR SEATBACK
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD LE24)&SEAT HEATER-WITH
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
HYPER BLACK,TRIM2#
HYPER BLACK,TRIM2#
HYPER BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD LE24)&SEAT HEATER-WITH,BLACK,TRIM1#,3#,4#,5#,6#,8#
BLACK,TRIM1#,3#,4#,5#,6#,8#
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD)&SEAT HEATER-WITH,BLACK,TRIM1#,3#,4#,5#,6#,8#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
HYPER BLACK,TRIM2#
HYPER BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD)&SEAT HEATER-WITH,HYPER BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
MD.GRAY/HYPER BLACK,TRIM0#,1#,3#,4#,6#,8#
MD.GRAY/HYPER BLACK,TRIM2#
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD LE24)&SEAT HEATER-WITH,HYPER BLACK,TRIM1#,3#,4#,5#,6#,8#
HYPER BLACK,TRIM1#,3#,4#,5#,6#,8#
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD)&SEAT HEATER-WITH,HYPER BLACK,TRIM1#,3#,4#,5#,6#,8#
MD.GRAY/BLACK,TRIM1#,3#,4#,6#,8#
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD)&SEAT HEATER-WITH,MD.GRAY/BLACK,TRIM1#,3#,4#,6#,8#
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD LE24)&SEAT HEATER-WITH,MD.GRAY/BLACK,TRIM1#,3#,4#,6#,8#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
HYPER BLACK,TRIM2#
HYPER BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD)&SEAT HEATER-WITH,HYPER BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
MD.GRAY/HYPER BLACK,TRIM2#
MD.GRAY/HYPER BLACK,TRIM0#,1#,3#,4#,6#,8#
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD)&SEAT HEATER-WITH,HYPER BLACK,TRIM1#,3#,4#,5#,6#,8#
HYPER BLACK,TRIM1#,3#,4#,5#,6#,8#
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD LE24)&SEAT HEATER-WITH,HYPER BLACK,TRIM1#,3#,4#,5#,6#,8#
MD.GRAY/BLACK,TRIM1#,3#,4#,6#,8#
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD)&SEAT HEATER-WITH,MD.GRAY/BLACK,TRIM1#,3#,4#,6#,8#
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD LE24)&SEAT HEATER-WITH,MD.GRAY/BLACK,TRIM1#,3#,4#,6#,8#
71452BBRACKET, REAR SEATBACK
71611PAD, REAR SEAT CUSHION
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD LE24)&SEAT HEATER-WITH
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD LE24)&SEAT HEATER-WITH
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD LE24)&SEAT HEATER-WITH
71931ASUPPORT, REAR SEAT HEADREST
W(LOCK),BLACK,TRIM2#
W(LOCK),SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD LE24)&SEAT HEATER-WITH,BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
W(LOCK),BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
W(LOCK),BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
W(LOCK),SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD)&SEAT HEATER-WITH,BLACK,TRIM1#,3#,4#,5#,6#,8#
W/O(LOCK),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
W/O(LOCK),BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
W/O(LOCK),SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD)&SEAT HEATER-WITH,BLACK,TRIM1#,3#,4#,5#,6#,8#
71940AHEADREST ASSY, REAR SEAT
HYPER BALCK,TRIM2#
HYPER BLACK,TRIM2#
HYPER BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD)&SEAT HEATER-WITH,HYPER BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD LE24)&SEAT HEATER-WITH,HYPER BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
HYPER BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
72615ACOVER, REAR SEATBACK LOCK STRIKER, RH
BLACK,TRIM2#
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD LE24)&SEAT HEATER-WITH,BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
72616ACOVER, REAR SEATBACK LOCK STRIKER, LH
BLACK,TRIM2#
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD LE24)&SEAT HEATER-WITH,BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
72693HOOK, REAR SEAT CUSHION LOCK
82712CLAMP, WIRING HARNESS
89953BSENSOR, BELT WARNING OCCUPANT DETECTION
SEAT COVER MATERIAL-MAIN:FAB SIDE:LTR (RD LE24)&SEAT HEATER-WITH
90105W0009
main90105-W0009
90105W0172
main90105-W0172
9017908275
main90179-08275
19 parts on this diagram · 2 diagrams in section
