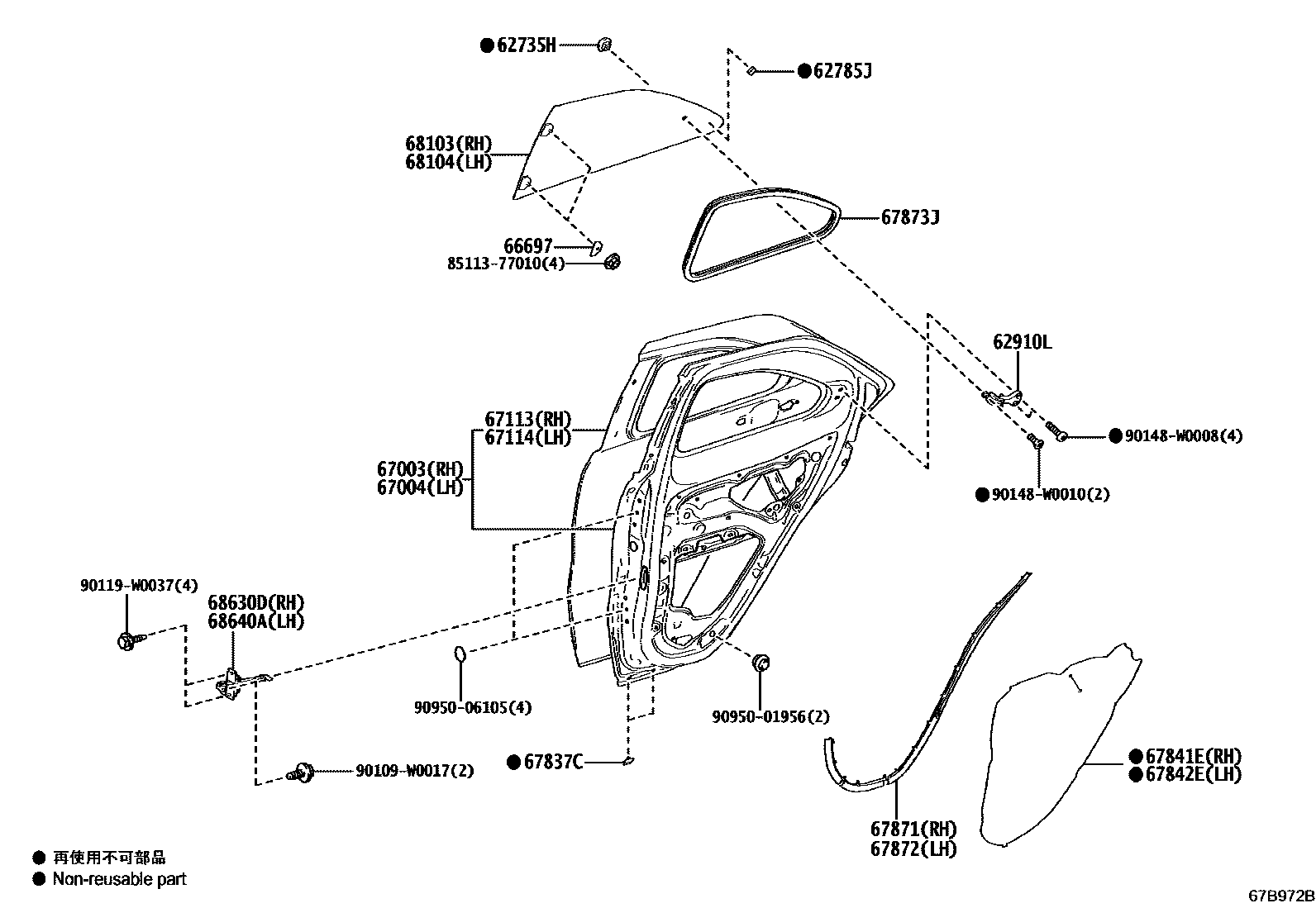

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

62735HRETAINER, QUARTER WINDOW HINGE

main62735-0H020iKGB70..LHD..R202203-202401

62785JSPACER, QUARTER WINDOW GLASS

main62785-0H050iKGB70..LHD..R202203-202401

62910LLOCK ASSY, SIDE WINDOW

main62910-0H040iKGB70..RHD;KGB70..LHD..(G,K,N)202203-202401

66697PLATE, DOOR GUARD WINDOW CUSHION

main66697-0H020iKGB70..RHD;KGB70..LHD..(G,K,N)202203-202401

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0H090iKGB70..LHD..N;KGB70..RHD..(N,R)202203-202401

main67003-0H100iKGB70..G,K202203

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0H090iKGB70..LHD..R202203-202401

main67004-0H100iKGB70..G,K202203

67113PANEL, REAR DOOR, OUTER RH

main67113-0H070iKGB70..LHD..N;KGB70..RHD..(N,R)202203-202401

main67113-0H080iKGB70..G,K202203

67114PANEL, REAR DOOR, OUTER LH

main67114-0H070iKGB70..LHD..N;KGB70..RHD..(N,R)202203-202401

main67114-0H080iKGB70..G,K202203

67837CSEAL, REAR DOOR DUST PROOF

main67837-48050iKGB70..RHD;KGB70..LHD..(G,K,N)202203-202401

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0H030iKGB70..LHD..R202203-202401

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-0H030iKGB70..LHD..R202203-202401

67871WEATHERSTRIP, REAR DOOR, RH

main67875-0H010

67872WEATHERSTRIP, REAR DOOR, LH

main67876-0H010

67873JWEATHERSTRIP, REAR DOOR GLASS, FRONT

main67873-0H050iKGB70..LHD..R202203-202401

68103GLASS SUB-ASSY, REAR DOOR, RH

main68130-0H150iKGB70..LHD..R202203-202401

main68130-0H160iKGB70..N202203

BACK GLASS-PRIVACY

68104GLASS SUB-ASSY, REAR DOOR, LH

main68140-0H150iKGB70..LHD..R202203-202401

main68140-0H160iKGB70..G,K202203

BACK GLASS-PRIVACY

68630DCHECK ASSY, REAR DOOR, RH

main68630-0H030iKGB70..R202305-202401

main68630-70010iKGB70202203-202304

68640ACHECK ASSY, REAR DOOR, LH

main68630-0H030iKGB70..G,K,N202305-202401

main68630-70010iKGB70202203-202304

8511377010FRAME, WINDSHIELD WIPER MOTOR END

main85113-77010

90109W0017

main90109-W0017

90119W0037

main90119-W0037

90148W0008

main90148-W0008

90148W0010

main90148-W0010

9095001956

main90950-01956

9095006105

main90950-06105

25 parts on this diagram · 2 diagrams in section
