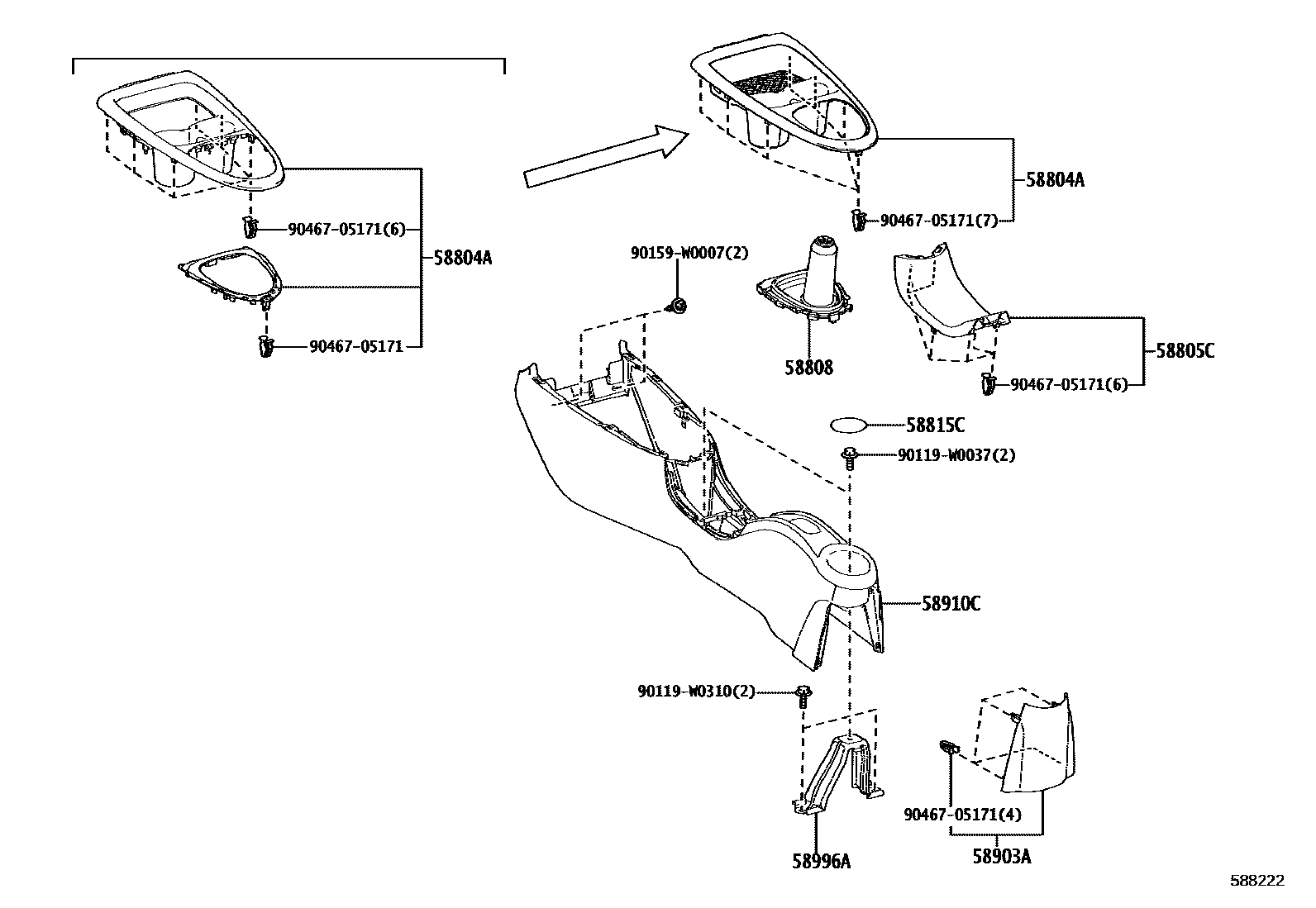

CONSOLE BOX & BRACKET
58804APANEL SUB-ASSY, CONSOLE, UPPER
BLACK,TRIM2#
BLACK,TRIM0#,30,40,60,80
BLACK/SCARLET ME.,TRIM30,31
BLACK/SCARLET ME.,TRIM3#
BLACK/BEIGE ME.,TRIM40,41
BLACK/BEIGE ME.,TRIM4#
BLACK/ALUMINA JADE ME.,TRIM60,61
BLACK/ALUMINA JADE ME.,TRIM6#
BLACK/JUNIPER BLUE M.M.,TRIM80,81
BLACK/JUNIPER BLUE M.M.,TRIM8#
BLACK/BRASS GOLD ME.,TRIM5#
CELESTITE GRAY ME.,TRIM1#
URBAN KHAKI,TRIM61
ANODIZED URBAN KHAKI,TRIM61
CELESTITE GRAY,TRIM10
DARK JASMINE,TRIM9#
BLACK/ANODIZED CHILI,TRIM30,31
BLACK/ANODIZED CARDAMOM,TRIM60,61
BLACK/ANODIZED JUNIPER,TRIM8#
BLACK/ANODIZED GINGER,TRIM40,41
BLACK/GUN METAL,TRIM10,30,31,40,41,5#,61
BLACK/GUN METAL,TRIM1#,30,31,40,41,5#,61
BLACK/GUN METAL,TRIM1#,30,31,40,41,50,61
BLACK/ANODISED MANDARINA,TRIM60,61
BLACK/ANODIZED CURCUMA,TRIM50
BLACK/CORAL,TRIM9#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
BLACK,TRIM2#
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM2#
GRAY NO.205,TRIM20
GRAY NO.205,TRIM2#
BLACK/GRAY,TRIM20
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM0#
BLACK/BORDEAUX,TRIM9#
URBAN KHAKI,TRIM61
URBAN KHAKI,TRIM6#
JASMINE,TRIM9#
CHILI,TRIM3#
GINGER,TRIM4#
ORANGE,TRIM60,61
BLACK/STICH_FILAN,TRIM5#,61
CARDAMOM,TRIM60,61
CARDAMOM,TRIM6#
BLUE,TRIM8#
GRAYISH BLUE,TRIM1#
58815CCARPET, CONSOLE BOX
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM2#
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
58910CBOX ASSY, CONSOLE, REAR
BLACK,TRIM2#
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
90119W0037
main90119-W0037
90119W0310
main90119-W0310
90159W0007
main90159-W0007
9046705171
main90467-05171
11 parts on this diagram · 1 diagram in section
