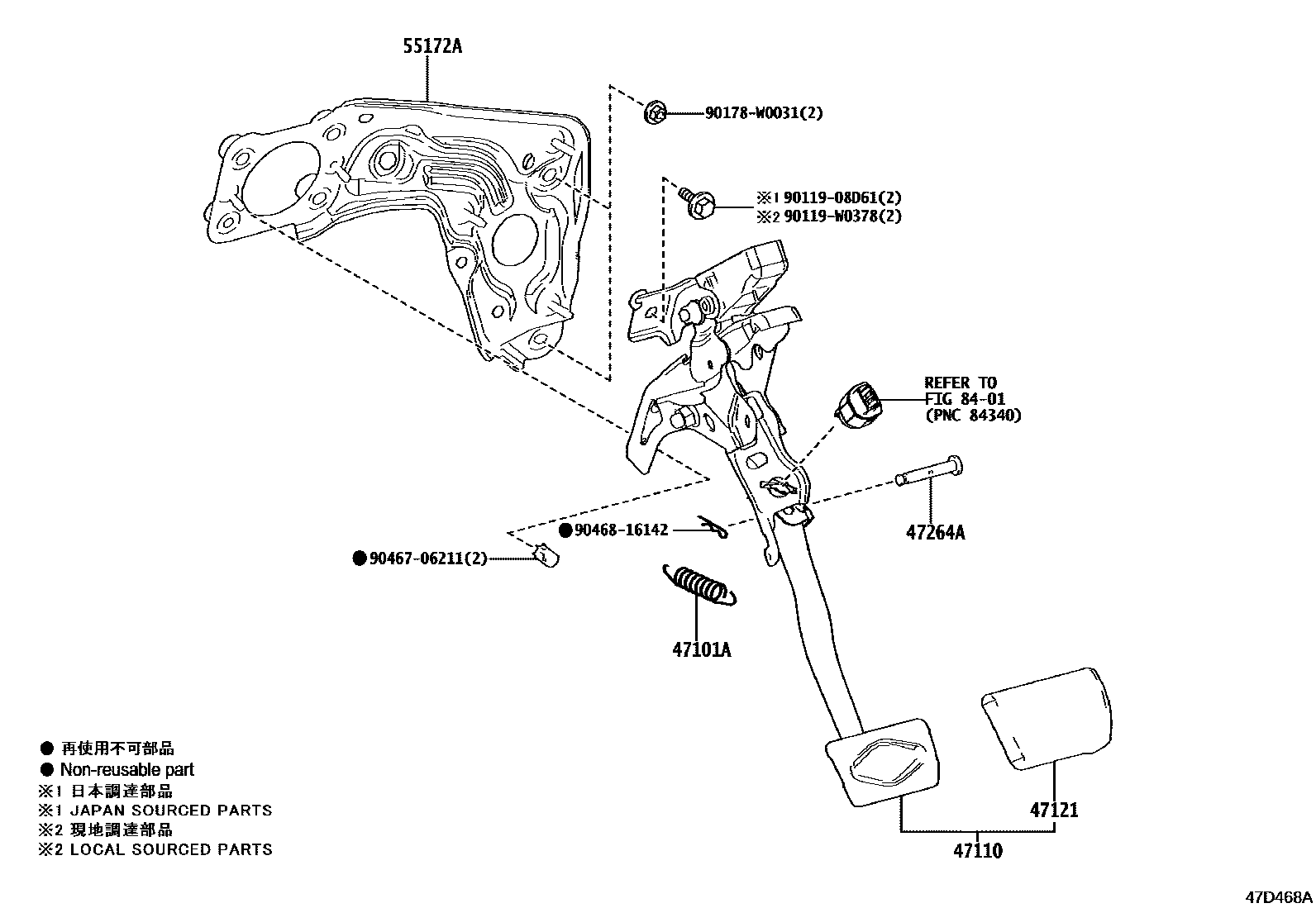

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-17003iKGB70..LHD..R202203-202401

47110SUPPORT ASSY, BRAKE PEDAL

main47110-K0011iKGB70..LHD..CVT202203

main47110-K0021iKGB70..LHD..5F..(G,K,N)202203

main47110-K0070iKGB70..RHD..CVT202203

main47110-K0080iKGB70..RHD..5F202203

47121PAD, BRAKE PEDAL

main47121-12040iKGB70..RHD..5F202203

main47121-47010iKGB70..RHD..CVT202203

main47121-F4010iKGB70..LHD..CVT202203

main47121-F4020iKGB70..LHD..R202203-202401

47264APIN(FOR PUSH ROD)

main90249-08051iKGB70..RHD202203

main90249-08221iKGB70..LHD..R202203-202401

55172ABASE, BRAKE PEDAL SUPPORT

main55172-0D050iKGB70..RHD202203

main55172-K0020iKGB70..LHD..R202203-202401

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908D61

main90119-08D61

90119W0378

main90119-W0378

90178W0031

main90178-W0031

9046706211

main90467-06211

9046816142

main90468-16142

11 parts on this diagram · 2 diagrams in section
