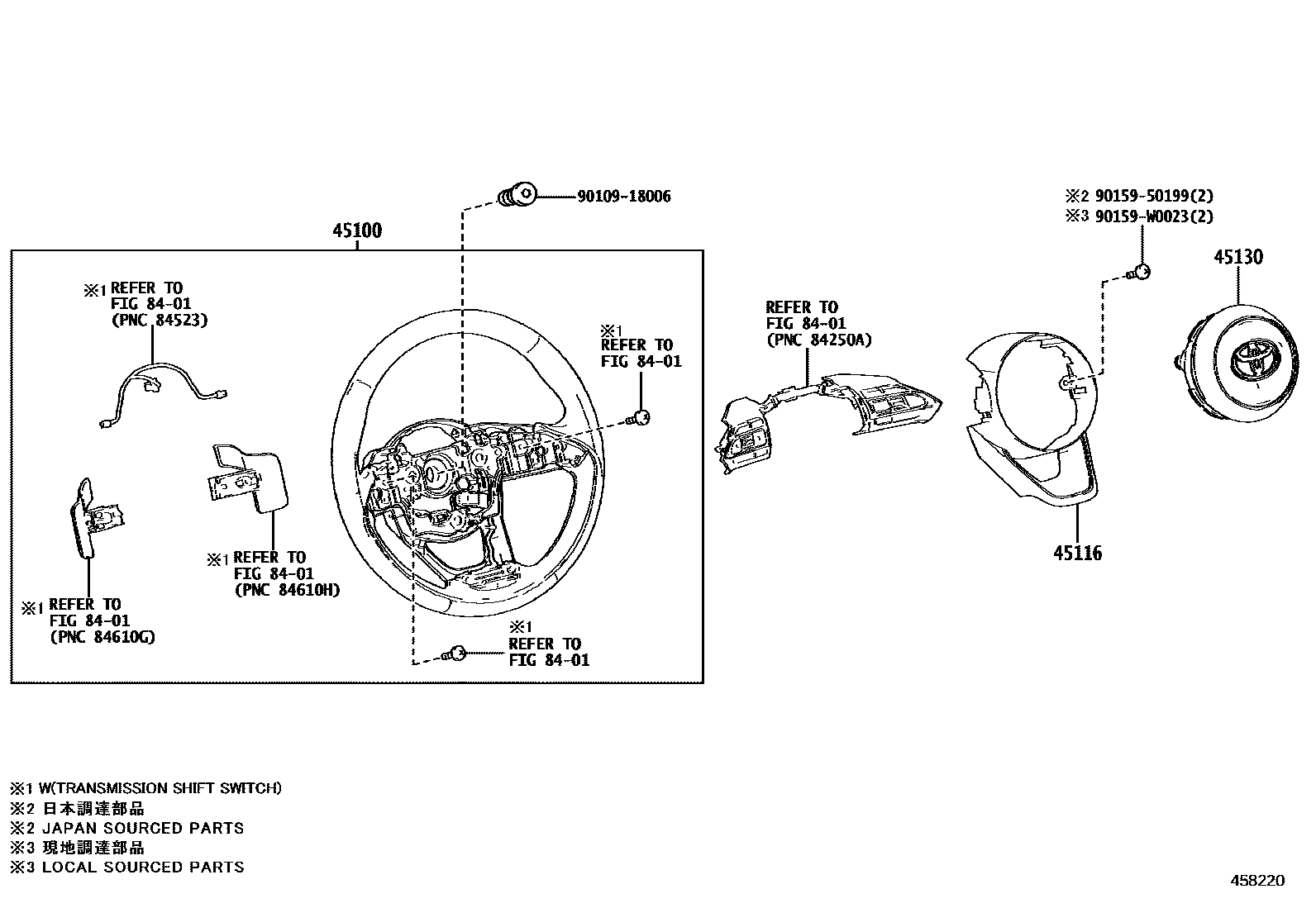

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM3#,4#,6#,8#
3-SPOKE,LEATHER,BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
3-SPOKE,LEATHER,BLACK,TRIM2#
3-SPOKE,LEATHER,BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
3-SPOKE,LEATHER,BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
45116ORNAMENT, STEERING WHEEL, NO.1
BLACK,TRIM2#
ANODIZED JUNIPER,TRIM8#
ANODIZED JUNIPER,TRIM80
ANODIZED GINGER,TRIM40
ANODIZED GINGER,TRIM40,41
ANODIZED CURCUMA,TRIM50
ANODIZED URBAN KHAKI,TRIM61
CELESTITE GRAY,TRIM10
DARK JASMINE,TRIM9#
STEERING WHEEL-LEATHER,PAINT,WITH(PADDLE SWITCH)&SPEED LIMITER CONTROL-ADJUSTABLESPEED LIMITER,BLACK,TRIM2#
BLACK,TRIM30,31,40,41,60,61
BLACK,TRIM30,31,40,41,60,61,80,81
STEERING WHEEL-LEATHER,PAINT&SPEED LIMITER CONTROL-ADJUSTABLE SPEED LIMITER,BLACK,TRIM2#
BLACK,TRIM1#,30,31,40,41,5#,60,61
BLACK,TRIM2#
BLACK,TRIM0#,1#,30,31,40,41,5#,6#,80,81
BLACK,TRIM10,30,31,40,41,5#,60,61
BLACK,TRIM0#,1#,3#,40,41,5#,60,61,80,81
BLACK,TRIM1#,30,31,40,41,50,60,61
CORAL CS.,TRIM9#
ANODIZED CHILI,TRIM30
ANODIZED CHILI,TRIM30,31
ANODIZED CARDAMOM,TRIM60
ANODIZED CARDAMOM,TRIM60,61
45130BUTTON ASSY, HORN
BLACK,TRIM2#
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
8401
9010918006
main90109-18006
9015950199
main90159-50199
90159W0023
main90159-W0023
7 parts on this diagram · 1 diagram in section
