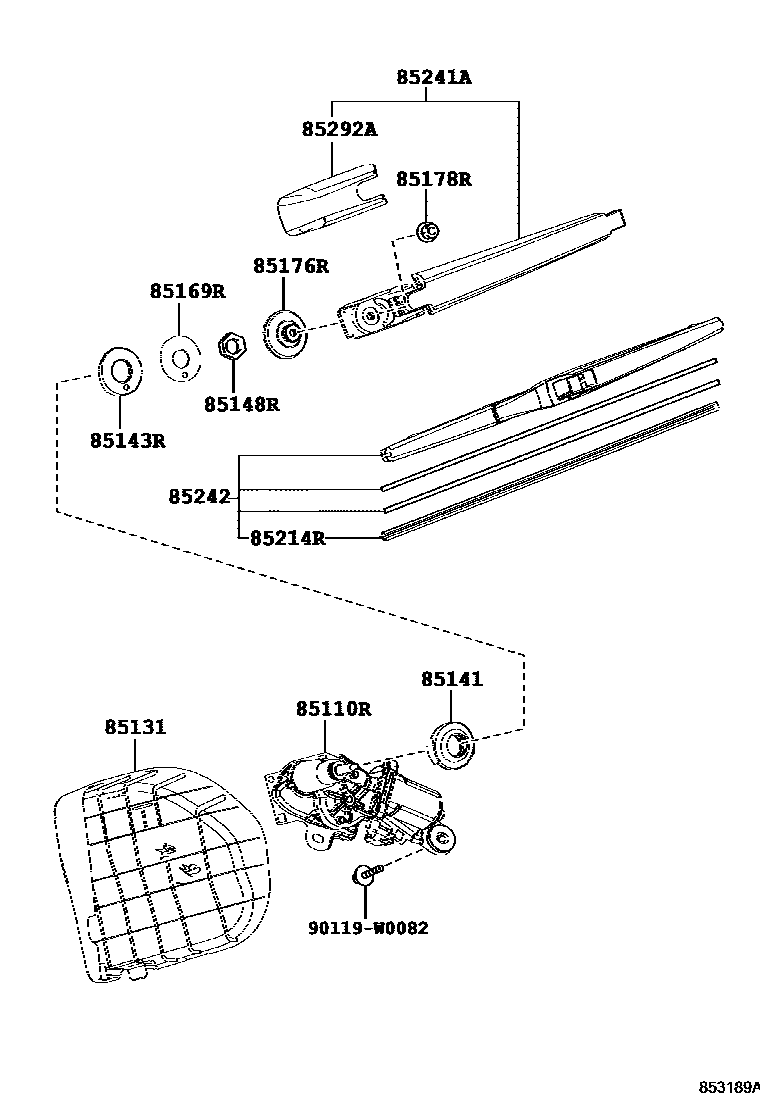

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0H050iKGB40,PAB40201405-201705

sub85130-0H051

main85130-0H051iKGB40,PAB40201706-202104

85131COVER, REAR WIPER MOTOR

main85131-0H030iKGB40,PAB40201405-201705

sub85131-0H031

main85131-0H031iKGB40,PAB40201706-202104

85141HOLDER, RR WIPER MOTOR W/PACKING

main85141-0H030iKGB40,PAB40201405-202104

85143RGROMMET, REAR WIPER MOTOR

main85143-0H030iKGB40,PAB40201405-202104

85148RNUT, W/WASHER PACKING, REAR WIPER LINK PIVOT

main90099-05141iKGB40,PAB40201405-202104

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85134-0H030iKGB40,PAB40201405-202104

85176RCAP, REAR WIPER LINK

main85172-0H020iKGB40,PAB40201405-202104

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iKGB40,PAB40201405-202104

85214RRUBBER, REAR WIPER

main85214-0H050iKGB40,PAB40201405-202104

85241AARM, REAR WIPER

main85241-0H030iKGB40,PAB40201405-202104

85242BLADE, RR WIPER

main85242-0H020iKGB40,PAB40201405-201603

sub85242-0H021

main85242-0H021iKGB40,PAB40201604-202104

85292ACAP, REAR WIPER ARM HEAD

main85292-0H030iKGB40,PAB40201405-202104

90119W0082

main90119-W0082

13 parts on this diagram · 1 diagram in section
