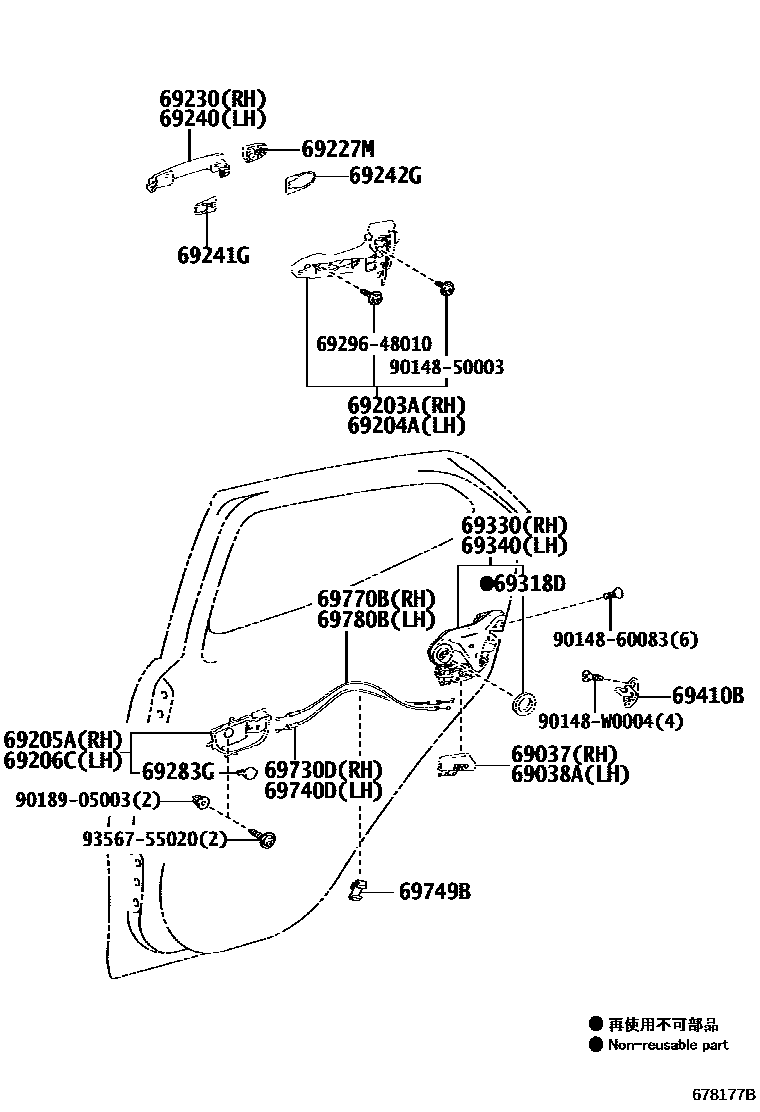

REAR DOOR LOCK & HANDLE
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
MISTRAL,TRIM2#
MISTRAL -PSA HZD,TRIM2#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
MISTRAL,TRIM2#
MISTRAL -PSA HZD,TRIM2#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
LESS COLOR
BLACK MATERIAL
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
NO PAINT REQ.
PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
NO PAINT REQ.
PAINT REQ.
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
sub69241-48020
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283GPLUG, REAR DOOR INSIDE HANDLE BEZEL
PSA MISTRAL HZD,TRIM2#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69749BCLAMP, REAR DOOR LOCK LINK
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6929648010SCREW, DOOR INSIDE HANDLE
main69296-48010
9014850003
main90148-50003
9014860083
main90148-60083
90148W0004
main90148-W0004
9018905003
main90189-05003
9356755020
main93567-55020
27 parts on this diagram · 1 diagram in section
