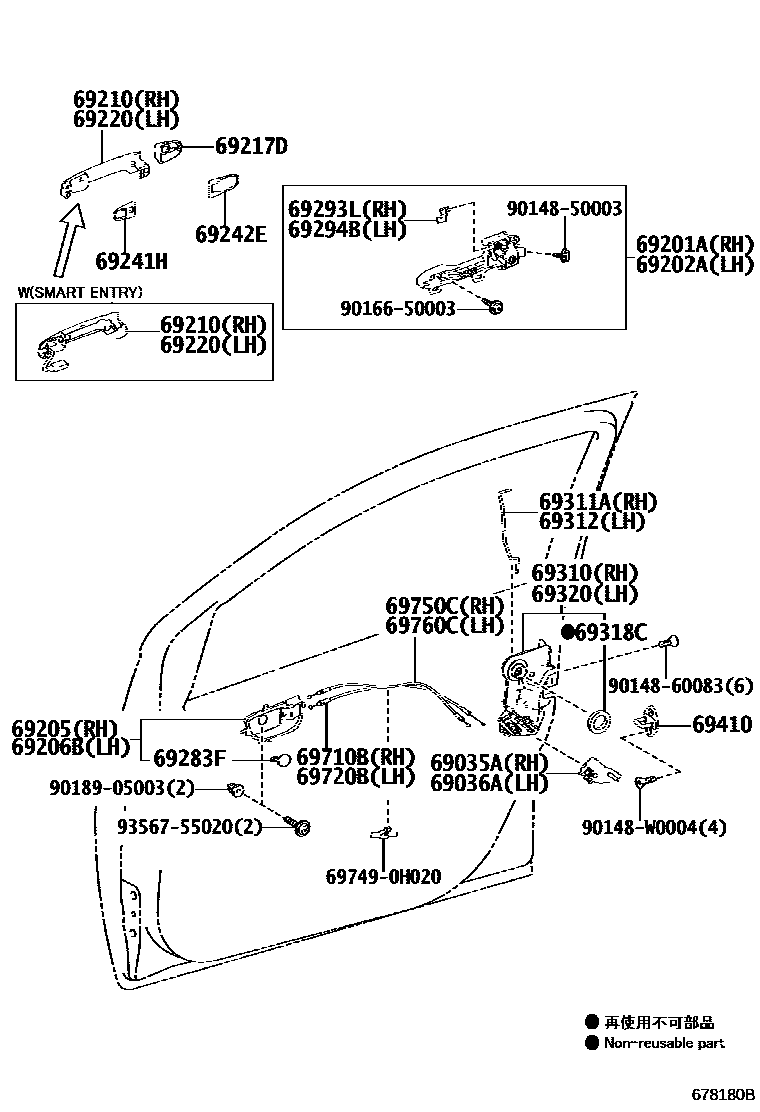

FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
MISTRAL,TRIM2#
MISTRAL -PSA HZD,TRIM2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
MISTRAL,TRIM2#
MISTRAL -PSA HZD,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.
PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
DRIVER SIDE
PASSENGER SIDE
PASSENGER SIDE
BLACK MATERIAL
BLACK MATERIAL,DRIVER SIDE
BLACK MATERIAL,DRIVER SIDE
BLACK MATERIAL,PASSENGER SIDE
BLACK MATERIAL,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.
PAINT REQ.
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283FPLUG, FRONT DOOR INSIDE HANDLE BEZEL
PSA MISTRAL HZD,TRIM2#
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
697490H020CLAMP, FRONT DOOR LOCK LINK
main69749-0H020
9014850003
main90148-50003
9014860083
main90148-60083
90148W0004
main90148-W0004
9016650003
main90166-50003
9018905003
main90189-05003
9356755020
main93567-55020
31 parts on this diagram · 1 diagram in section
