ENGINE OVERHAUL GASKET KIT

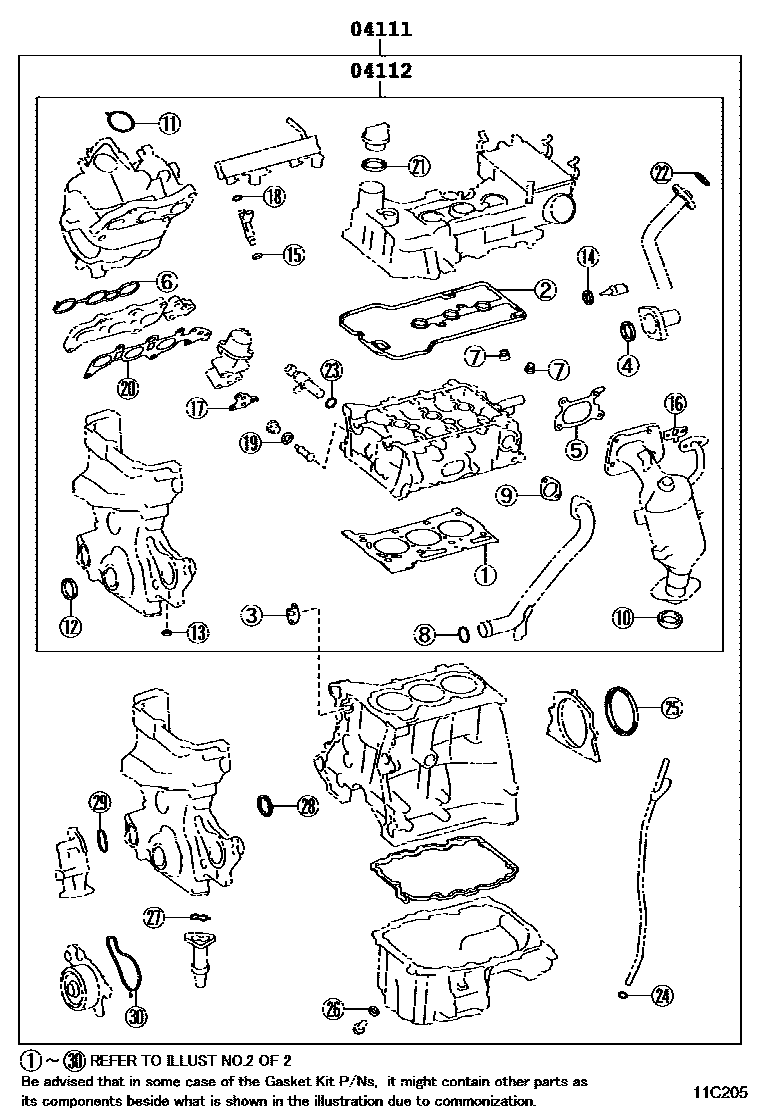

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-0Q071i201405-201805
main04111-0Q080i201805-201810
sub04111-0Q081
main04111-0Q081i201810-202207
main04111-0Q082i202207
04112GASKET KIT, ENGINE VALVE GRIND
main04112-0Q070i201405-201805
sub04112-0Q071
main04112-0Q080i201805-201810
sub04112-0Q081
main04112-0Q081i201810-202207
main04112-0Q082i202207

2 parts on this diagram · 4 diagrams in section
