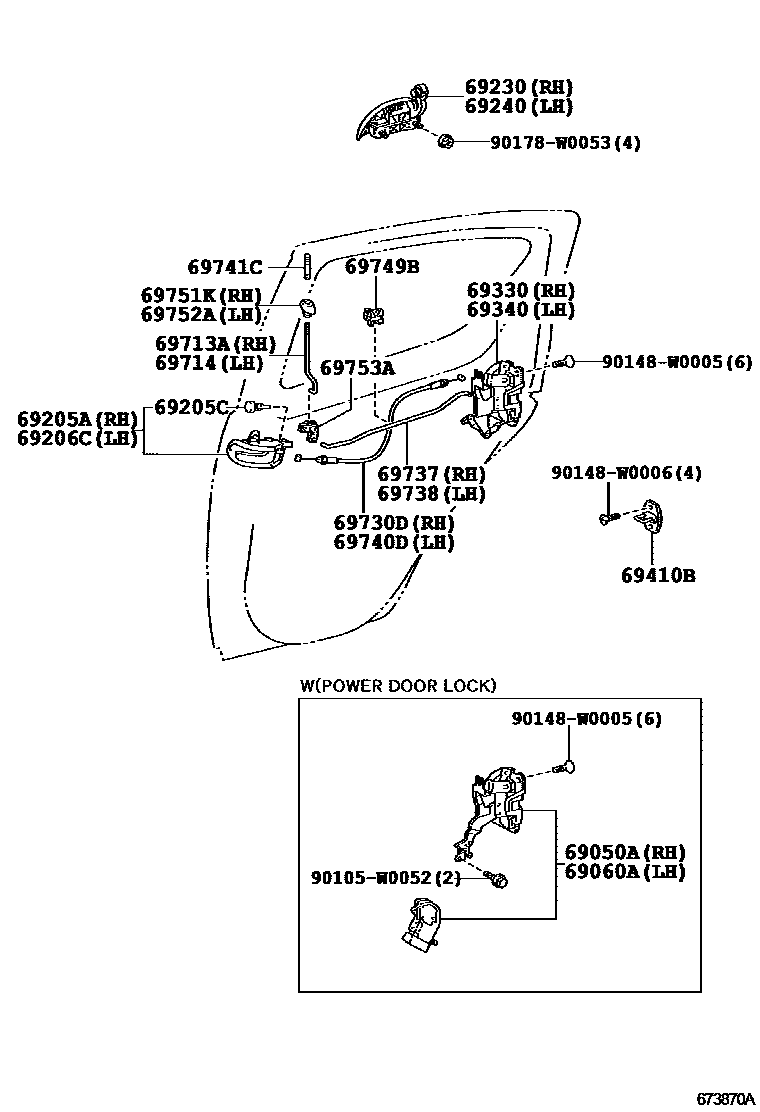

REAR DOOR LOCK & HANDLE
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
POWER PACKAGE
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
POWER PACKAGE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
MEDIUM GREY,TRIM1#
MEDIUM GREY,TRIM1#,2#
DARK GREY,TRIM1#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
MEDIUM GREY,TRIM1#
MEDIUM GREY,TRIM1#,2#
DARK GREY,TRIM1#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
NO PAINT REQ.
T IP+SP PACKAGE
T IP+SP+MIRROR+HANDLE PACKAGE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
BLACK
T IP+SP PACKAGE
T IP+SP+MIRROR+HANDLE PACKAGE
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH
69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69737LINK, REAR DOOR INSIDE LOCKING, RH
69738LINK, REAR DOOR INSIDE LOCKING, LH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69741CKNOB, REAR DOOR LOCK CONTROL
MEDIUM GREY,TRIM1#
MEDIUM GREY,TRIM1#,2#
DARK GREY,TRIM1#
69749BCLAMP, REAR DOOR LOCK LINK
69751KHOLDER, DOOR LOCK CONTROL KNOB, RH
MEDIUM GREY,TRIM1#
MEDIUM GREY,TRIM1#,2#
DARK GREY,TRIM1#
69752AHOLDER, DOOR LOCK CONTROL KNOB, LH
MEDIUM GREY,TRIM1#
MEDIUM GREY,TRIM1#,2#
DARK GREY,TRIM1#
69753ABELLCRANK, DOOR LOCK CONTROL
90105W0052
main90105-W0052
90148W0005
main90148-W0005
90148W0006
main90148-W0006
90178W0053
main90178-W0053
25 parts on this diagram · 1 diagram in section
