INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

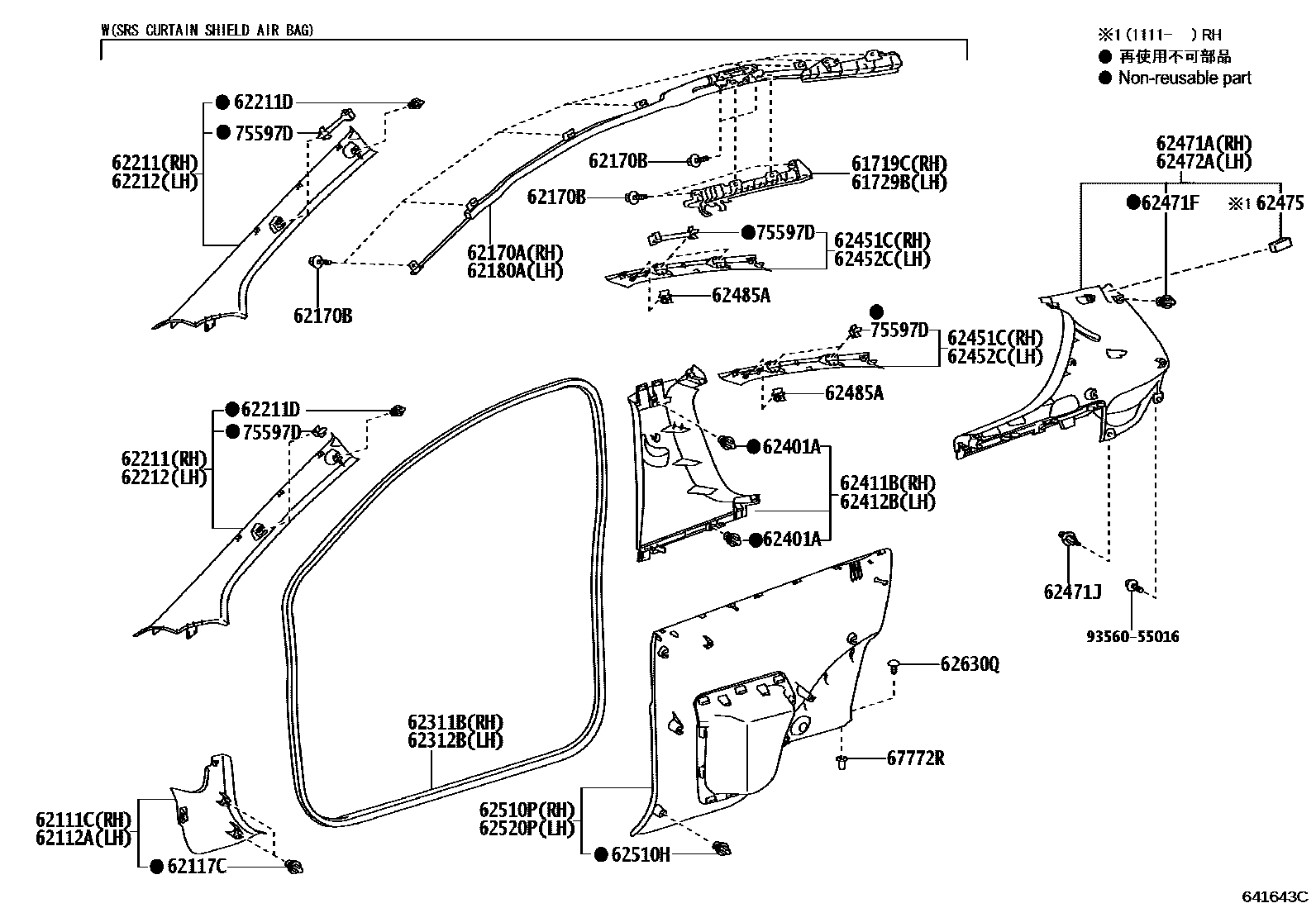

Parts diagram
61719CBRACKET, ROOF SIDE RAIL, RH
main61719-0H010i201307
SRS AIR BAG-WITH(DRIVER&PASSENGER E-TYPE)& W/O(SIDE)
main61719-0H010i201307
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE)
main61719-0H020i201307
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE)
main61719-0H020i201307
SRS AIR BAG-WITH(DRIVER&PASSENGER E-TYPE)& W/O(SIDE)
61729BBRACKET, ROOF SIDE RAIL, LH
main61729-0H010i201307
SRS AIR BAG-WITH(DRIVER&PASSENGER E-TYPE)& W/O(SIDE)
main61729-0H010i201307
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE)
main61729-0H020i201307
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE)
main61729-0H020i201307
SRS AIR BAG-WITH(DRIVER&PASSENGER E-TYPE)& W/O(SIDE)
62111CBOARD, COWL SIDE TRIM, RH
main62111-0H010-B0i200502-200812
MEDIUM GREY,TRIM1#
main62111-0H010-B0i200812-201202
MEDIUM GREY,TRIM1#,2#
main62111-0H010-B1i201202-201406
DARK GREY,TRIM1#
main62111-0H020-B0i200505-200812
MEDIUM GREY,TRIM1#
main62111-0H020-B0i200812-201009
MEDIUM GREY,TRIM1#,2#
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62112-0H010-B0i200502-200812
MEDIUM GREY,TRIM1#
main62112-0H010-B0i200812-201202
MEDIUM GREY,TRIM1#,2#
main62112-0H010-B1i201202-201406
DARK GREY,TRIM1#
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
main90467-W0005i200502-201202
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-0H010i201307
SRS AIR BAG-WITH(DRIVER&PASSENGER E-TYPE)& W/O(SIDE)
main62170-0H010i201307
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE)
main62170-0H020i201307
SRS AIR BAG-WITH(DRIVER&PASSENGER E-TYPE)& W/O(SIDE)
main62170-0H020i201307
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE)
62170BBOLT, W/WASHER
main90119-W0078i201307
SRS AIR BAG-WITH(DRIVER&PASSENGER E-TYPE)& W/O(SIDE)
main90119-W0078i201307
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE)
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-0H010i201307
SRS AIR BAG-WITH(DRIVER&PASSENGER E-TYPE)& W/O(SIDE)
main62180-0H010i201307
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE)
main62180-0H020i201307
SRS AIR BAG-WITH(DRIVER&PASSENGER E-TYPE)& W/O(SIDE)
main62180-0H020i201307
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE)
62211GARNISH, FRONT PILLAR, RH
main62211-0H010-B0i200502-200811
LIGHT GREY,TRIM1#
sub62211-0H050
main62211-0H030-B0i200505-200811
LIGHT GREY,TRIM1#
sub62211-0H050
main62211-0H050-B0i200812-201202
LIGHT GREY,TRIM1#,2#
main62211-0H050-B0i200811-201307
LIGHT GREY,TRIM1#
main62211-0H060-B0i201307-201406
LIGHT GREY,TRIM1#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
main90467-W0005i200502-201202
62212GARNISH, FRONT PILLAR, LH
main62212-0H010-B0i200502-200811
LIGHT GREY,TRIM1#
sub62212-0H030
main62212-0H030-B0i200811-201307
LIGHT GREY,TRIM1#
main62212-0H030-B0i200812-201202
LIGHT GREY,TRIM1#,2#
main62212-0H040-B0i201307-201406
LIGHT GREY,TRIM1#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-0H010i200502-200706
sub62311-0H012
main62311-0H012i200706-200804
sub62311-0H013
main62311-0H013i200804-200905
sub62311-0H014
main62311-0H014i200906-201202
main62311-0H020i200502-200706
sub62311-0H022
main62311-0H022i200706-200804
sub62311-0H023
main62311-0H023i200804-200905
sub62311-0H024
main62311-0H024i200906-201202
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62311-0H012i200712-200804
sub62311-0H013
main62311-0H013i200804-200905
sub62311-0H014
main62311-0H014i200906-201202
main62311-0H022i200712-200804
sub62311-0H023
main62311-0H023i200804-200905
sub62311-0H024
main62311-0H024i200906-201202
main62312-0H010i200502-200706
sub62312-0H012
main62312-0H012i200706-200712
sub62311-0H012
main62312-0H020i200502-200706
sub62312-0H022
main62312-0H022i200706-200712
sub62311-0H022
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
main90467-W0005i200502-201202
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-0H010-B0i200812-201202
LIGHT GREY,TRIM1#,2#
main62411-0H010-B0i200502-201406
LIGHT GREY,TRIM1#
main62411-0H020-B0i200502-201406
LIGHT GREY,TRIM1#
main62411-0H020-B0i200812-201202
LIGHT GREY,TRIM1#,2#
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-0H010-B0i200812-201202
LIGHT GREY,TRIM1#,2#
main62412-0H010-B0i200502-201406
LIGHT GREY,TRIM1#
main62412-0H020-B0i200502-201406
LIGHT GREY,TRIM1#
main62412-0H020-B0i200812-201202
LIGHT GREY,TRIM1#,2#
62451CGARNISH, ROOF SIDE RAIL, REAR RH
main62451-0H010-B0i200502-201307
LIGHT GREY,TRIM1#
main62451-0H010-B0i200812-201202
LIGHT GREY,TRIM1#,2#
main62451-0H030-B0i201307-201406
LIGHT GREY,TRIM1#
62452CGARNISH, ROOF SIDE RAIL, REAR LH
main62452-0H010-B0i200812-201202
LIGHT GREY,TRIM1#,2#
main62452-0H010-B0i200502-201307
LIGHT GREY,TRIM1#
main62452-0H030-B0i201307-201406
LIGHT GREY,TRIM1#
62471AGARNISH, ROOF SIDE, INNER RH
main62471-0H010-B0i200502-200811
LIGHT GREY,TRIM1#
main62471-0H020-B0i200502-200811
LIGHT GREY,TRIM1#
main62471-0H090-B0i200811-200812
LIGHT GREY,TRIM1#
main62471-0H090-B0i200812-201105
LIGHT GREY,TRIM1#,2#
main62471-0H091-B0i201202-201307
LIGHT GREY,TRIM1#
main62471-0H091-B0i201105-201202
LIGHT GREY,TRIM1#,2#
main62471-0H100-B0i200811-200812
LIGHT GREY,TRIM1#
main62471-0H100-B0i200812-201105
LIGHT GREY,TRIM1#,2#
main62471-0H101-B0i201105-201202
LIGHT GREY,TRIM1#,2#
main62471-0H101-B0i201202-201307
LIGHT GREY,TRIM1#
main62471-0H131-B0i201307-201406
LIGHT GREY,TRIM1#
main62471-0H141-B0i201307-201406
LIGHT GREY,TRIM1#
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
main90467-W0005i200502-201202
62471JCLIP (FOR ROOF SIDE GARNISH)
main90467-06165-B1i201202-201406
LIGHT GREY,TRIM1#,TYPE B:REFER ILLUST.
sub90467-06165
main90467-07043-B7i201202-201406
LIGHT GREY,TRIM1#,TYPE A:REFER ILLUST.
sub90467-07043
main90467-07043-B7i200812-201202
LIGHT GREY,TRIM1#,2#
sub90467-07043
main90467-07043-B7i200502-200812
LIGHT GREY,TRIM1#
sub90467-07043
62472AGARNISH, ROOF SIDE, INNER LH
main62472-0H010-B0i200502-200811
LIGHT GREY,TRIM1#
main62472-0H020-B0i200502-200811
LIGHT GREY,TRIM1#
main62472-0H090-B0i200812-201202
LIGHT GREY,TRIM1#,2#
main62472-0H090-B0i200811-201307
LIGHT GREY,TRIM1#
main62472-0H100-B0i200812-201202
LIGHT GREY,TRIM1#,2#
main62472-0H100-B0i200811-201307
LIGHT GREY,TRIM1#
main62472-0H130-B0i201307-201406
LIGHT GREY,TRIM1#
main62472-0H140-B0i201307-201406
LIGHT GREY,TRIM1#
62475PAD, ROOF SIDE INNER GARNISH
main62475-0H010i201111-201202
62485ARETAINER, ROOF SIDE INNER GARNISH
main62485-0H010i200502-201202
62510HCLIP(FOR QUARTER TRIM FRONT PANEL)
main90467-W0005i200502-201202
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
main62510-0H010-B0i200812-201202
MEDIUM GREY,TRIM1#,2#
main62510-0H010-B0i200502-200812
MEDIUM GREY,TRIM1#
main62510-0H010-B1i201202-201406
DARK GREY,TRIM1#
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
main62520-0H010-B0i200812-201202
MEDIUM GREY,TRIM1#,2#
main62520-0H010-B0i200502-200812
MEDIUM GREY,TRIM1#
main62520-0H010-B1i201202-201406
DARK GREY,TRIM1#
62630QCLIP (FOR QUARTER TRIM)
main90467-07042-C0i201202-201406
BLACK,TYPE B:REFER ILLUST.
sub90467-07042
sub90467-06175
main90467-10034-C0i200502-201202
BLACK
sub90467-10034
main90467-10034-C0i201202-201406
BLACK,TYPE A:REFER ILLUST.
sub90467-10034
67772RCAP, DOOR TRIM RETAINER
main67772-44010i200502-201202
75597DCLIP, ROOF SIDE GARNISH
main75597-05010i201307
main75597-0H010i200502-201307
9356055016
main93560-55016

31 parts on this diagram · 2 diagrams in section
