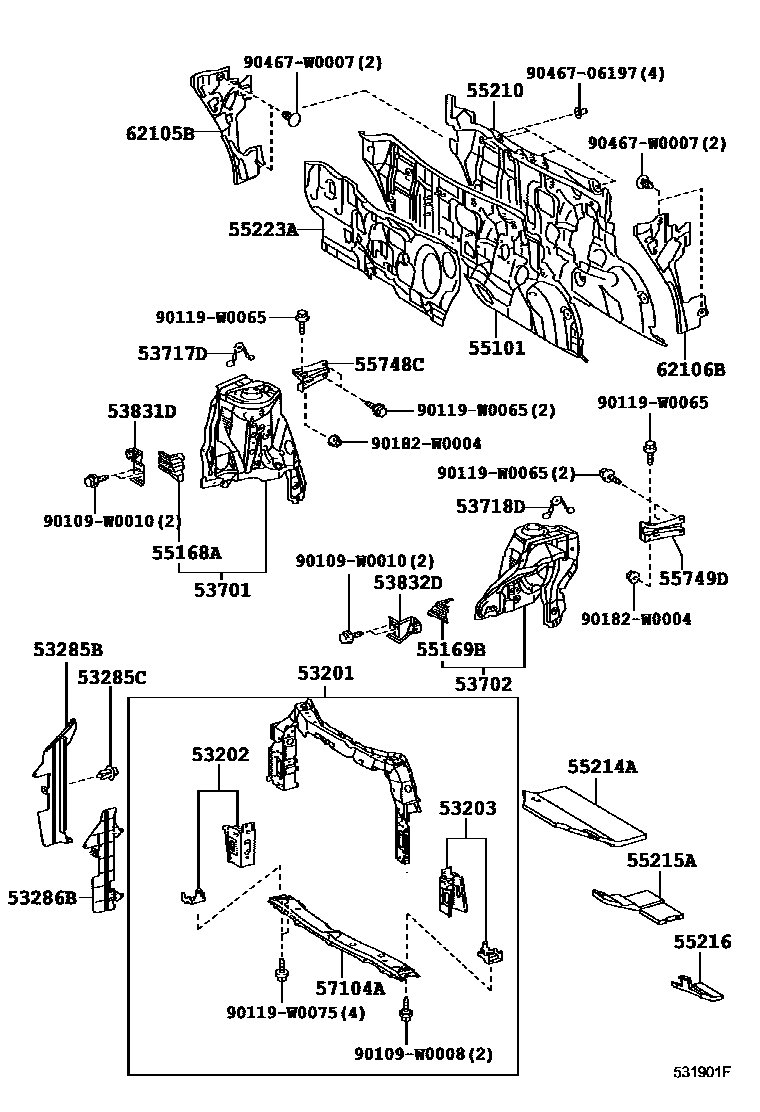

FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53285CCLIP(FOR RADIATOR SIDE AIR SEAL)
53286BSEAL, RADIATOR SIDE AIR, NO.2
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53717DGUSSET, FENDER APRON, RH
53718DGUSSET, FENDER APRON, LH
53831DPANEL, FRONT FENDER SIDE, RH
53832DPANEL, FRONT FENDER SIDE, LH
55101PANEL SUB-ASSY, DASH
WITH(VSC)
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55210INSULATOR ASSY, DASH PANEL
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
55216PAD, DASH PANEL INSULATOR, NO.4
55223AINSULATOR, DASH PANEL, OUTER
NV PACKAGE
NV PACKAGE
NV PACKAGE
NV PACKAGE
55748CBRACE, COWL TOP INNER TO PILLAR, RH
55749DBRACE, COWL TOP INNER TO PILLAR, LH
57104AMEMBER SUB-ASSY, FRONT CROSS
62105BINSULATOR SUB-ASSY, COWL SIDE, RH
62106BINSULATOR SUB-ASSY, COWL SIDE, LH
90109W0008
main90109-W0008
90109W0010
main90109-W0010
90119W0065
main90119-W0065
90119W0075
main90119-W0075
90182W0004
main90182-W0004
9046706197
main90467-06197
90467W0007
main90467-W0007
32 parts on this diagram · 4 diagrams in section
