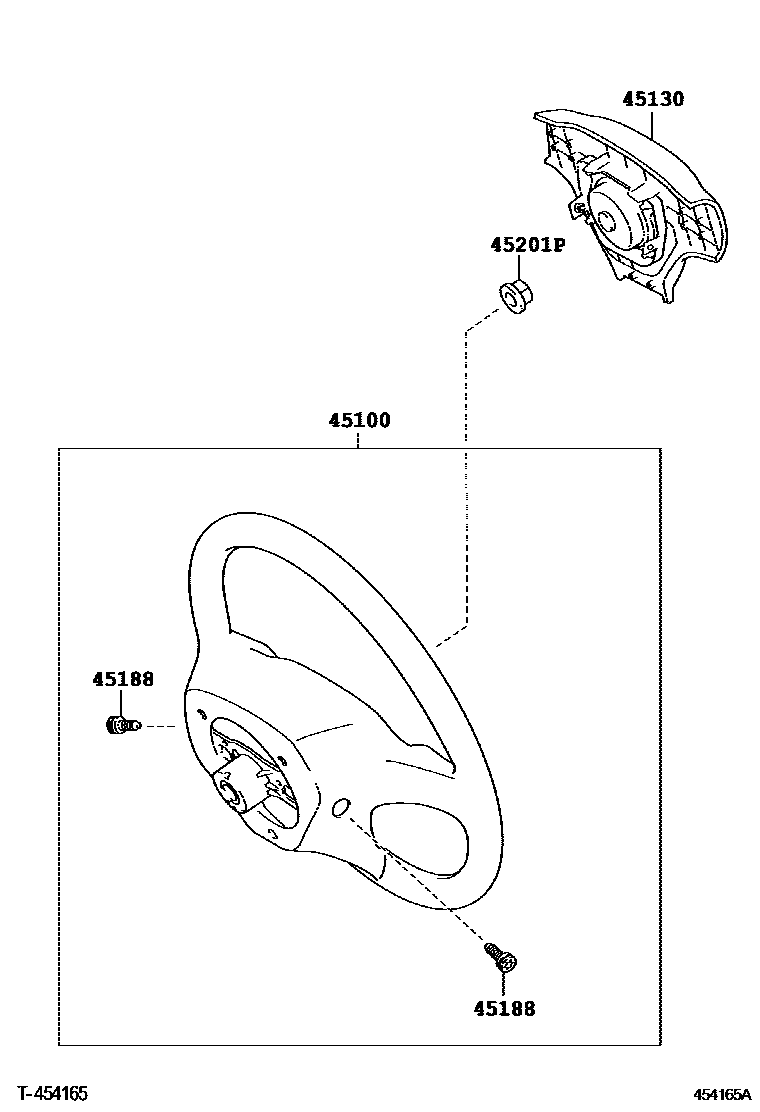

STEERING WHEEL

0001 13-SPOKE 0002 13-SPOKE,URETHANE 0003 13-SPOKE,LEATHER

45100WHEEL ASSY, STEERING

main45100-0H010-B0iKGB10,WNB10200812-201202

3-SPOKE,URETHANE,DARK GREY,TRIM1#,2#

main45100-0H010-B0iKGB10,WNB10200502-201405

3-SPOKE,URETHANE,DARK GREY,TRIM1#

main45100-0H040-B0iKGB10..5FS201202-201303

3-SPOKE,LEATHER,DARK GREY,TRIM1#

sub45100-0H040

main45100-0H040-B1iKGB10..5FS201307-201405

3-SPOKE,LEATHER,DARK GREY & SODA,TRIM10,16

sub45100-0H040

main45100-0H040-B2iKGB10..5FS201303-201307

3-SPOKE,LEATHER,DARK GREY,TRIM1#

sub45100-0H040

main45100-0H040-B2iKGB10..5FS201307-201405

3-SPOKE,LEATHER,DARK GREY,TRIM10,11

sub45100-0H040

45130BUTTON ASSY, HORN

main45130-0H010-B0iKGB10,WNB10200502-201405

DARK GREY,TRIM1#

main45130-0H010-B0iKGB10,WNB10200812-201202

DARK GREY,TRIM1#,2#

main45130-0H060-B0iKGB10..5FS201202-201405

DARK GREY,TRIM1#

main45130-0H060-B0iKGB10..5FS201202-201405

STEERING WHEEL-TOYOTA, 3-SPOKE, LEATHER,DARK GREY,TRIM1#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010iKGB10,WNB10200502-201202

L=18

45201PNUT, STEERING WHEEL SET

main90178-W0030iKGB10,WNB10200502-200812

sub90179-12071

main90179-12071iWNB10200812-201202

4 parts on this diagram · 3 diagrams in section
