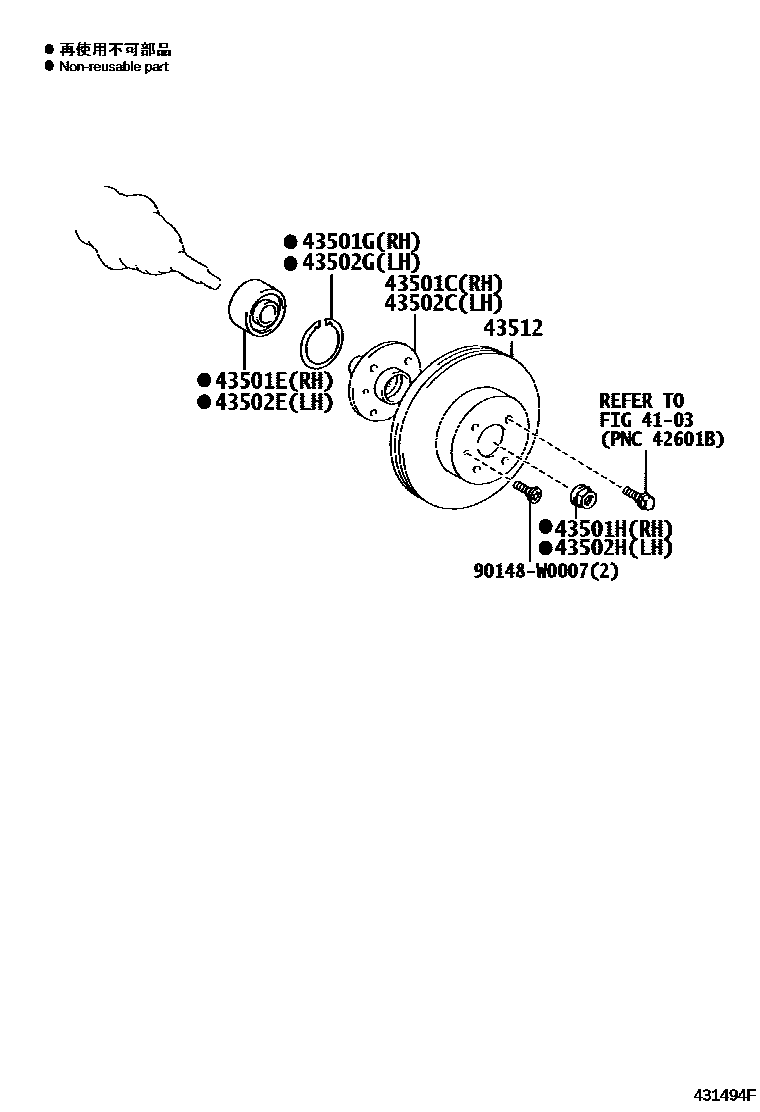

FRONT AXLE HUB

4103

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43511-0H010iKGB10200502-201202

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-W0001iKGB10,WNB10200502-201202

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-W0001iWNB10200502-201202

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iKGB10,WNB10200712-201202

main90177-W0001iKGB10,WNB10200502-200611

sub90177-W0003

main90177-W0003iKGB10,WNB10200612-200712

sub90177-22001

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43511-0H010iKGB10200502-201202

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-W0001iKGB10,WNB10200502-201202

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-W0001iKGB10,WNB10200502-201202

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iKGB10200712-201202

main90177-W0001iKGB10,WNB10200502-200611

sub90177-W0003

main90177-W0003iKGB10,WNB10200612-200712

sub90177-22001

43512DISC, FRONT

main43512-0H010iKGB10,WNB10200502-200701

sub43512-0H040

main43512-0H020iKGB10,WNB10200701-201405

sub43512-0H040

90148W0007

main90148-W0007

11 parts on this diagram · 1 diagram in section
