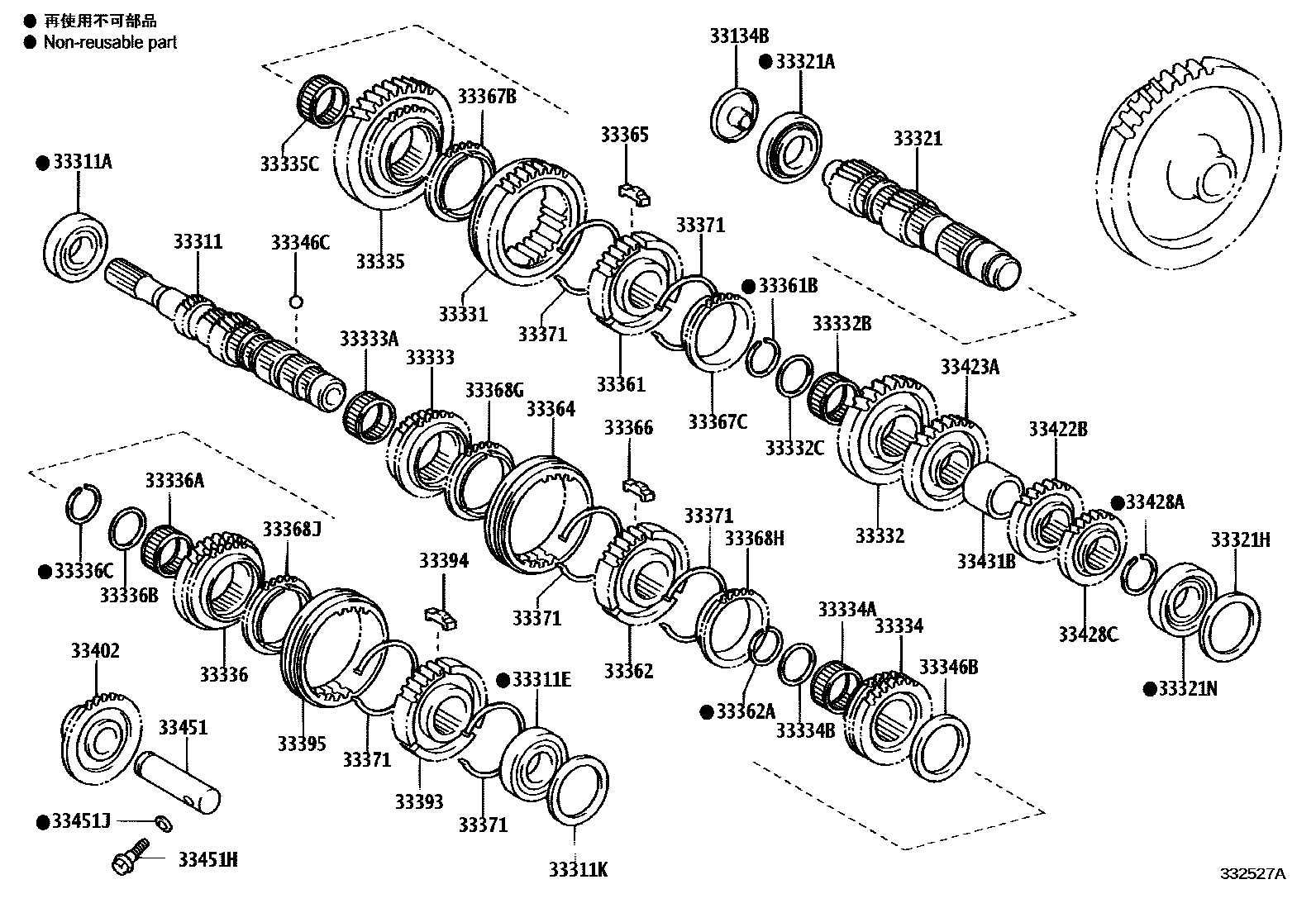

TRANSMISSION GEAR (MTM)
33134BCOVER, OUTPUT SHAFT(MTM)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
33311KSHIM (FOR INPUT SHAFT REAR BEARING)
T=1.80,MARK F
T=1.85,MARK G
T=1.90,MARK H
T=1.95,MARK J
T=2.00,MARK K
T=2.05,MARK L
T=2.10,MARK M
T=2.15,MARK N
T=2.20,MARK A
T=2.25,MARK Q
T=2.30,MARK R
T=2.35,MARK S
T=2.40,MARK T
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
T=1.55,MARK A
T=1.60,MARK B
T=1.65,MARK C
T=1.70,MARK D
T=1.75,MARK E
T=1.80,MARK F
T=1.85,MARK G
T=1.90,MARK H
T=1.95,MARK J
T=2.00,MARK K
T=2.05,MARK L
T=2.10,MARK M
T=2.15,MARK N
T=2.20,MARK A
T=2.25,MARK Q
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33331GEAR, REVERSE
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33332CSPACER (FOR 2ND GEAR BEARING)
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334GEAR, 4TH
ECO PACKAGE
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
ECO PACKAGE
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33336BSPACER (FOR 5TH GEAR BEARING)
33336CRING, SHAFT SNAP (FOR 5TH GEAR)
T=2.28,MARK 1
T=2.34,MARK 2
T=2.40,MARK 3
T=2.46,MARK 4
T=2.52,MARK 5
T=2.58,MARK 6
33346BWASHER, 5TH GEAR THRUST
33346CBALL (FOR 5TH GEAR THRUST WASHER)
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.28,MARK A
T=2.34,MARK B
T=2.40,MARK C
T=2.46,MARK D
T=2.52,MARK E
T=2.58,MARK F
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.28,MARK A
T=2.34,MARK B
T=2.40,MARK C
T=2.46,MARK D
T=2.52,MARK E
T=2.58,MARK F
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367BRING, SYNCHRONIZER (FOR 1ST GEAR)
33367CRING, SYNCHRONIZER (FOR 2ND GEAR)
33368GRING, SYNCHRONIZER (FOR 3RD GEAR)
33368HRING, SYNCHRONIZER (FOR 4TH GEAR)
33368JRING, SYNCHRONIZER (FOR 5TH GEAR)
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33393HUB, TRANSMISSION CLUTCH, NO.3
33394KEY, SYNCHROMESH SHIFTING, NO.3
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33422BGEAR, 4TH DRIVEN
ECO PACKAGE
33428ARING, SHAFT SNAP (FOR COUNTER 5TH GEAR)
T=2.22,MARK A
T=2.28,MARK B
T=2.34,MARK C
T=2.40,MARK D
T=2.46,MARK E
T=2.52,MARK F
T=2.58,MARK G
T=2.64,MARK H
T=2.70,MARK J
33428CGEAR, 5TH DRIVEN
ECO PACKAGE
33431BSPACER, OUTPUT SHAFT
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
51 parts on this diagram · 1 diagram in section
