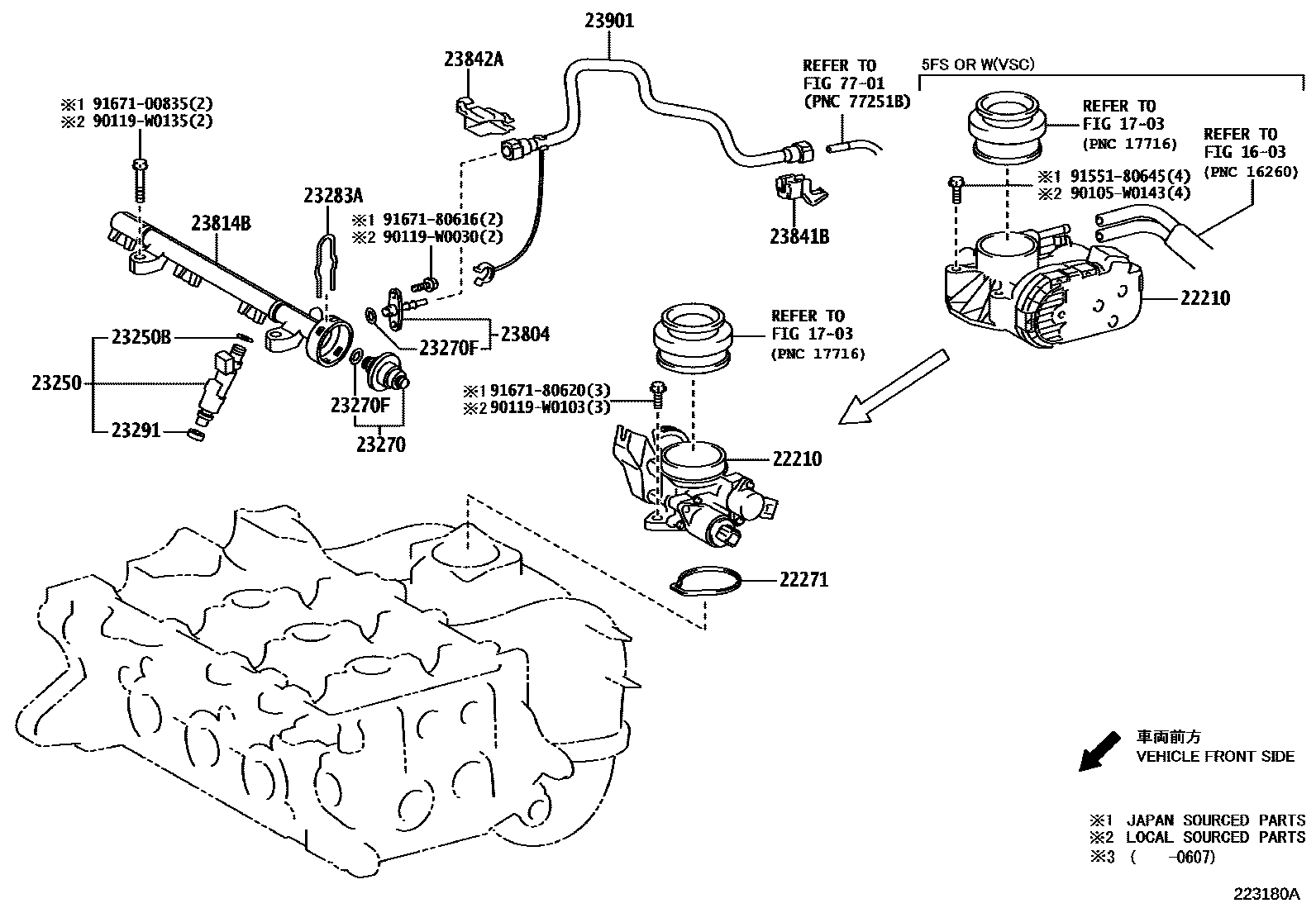

FUEL INJECTION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1703AIR CLEANER

→ Go to FIG 17-03

22210BODY ASSY, THROTTLE

main22030-0Q010i1KRFE..KGB10..5FS200505-200711

main22030-0Q020i1KRFE..KGB10..5FS200711-200812

main22030-0Q020i1KRFE..KGB10..5FS200812-201406

WITH(VSC)

main22210-0Q010i1KRFE..KGB10..5F200502-201406

22271GASKET, THROTTLE BODY

main22271-40010i1KRFE..KGB10200502-201406

23250INJECTOR ASSY, FUEL

main23209-09030i1KRFE..KGB10200502-201202

main23209-09210i1KRFE..KGB10201202-201406

(L)

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033i1KRFE..KGB10200502-201406

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-40010i1KRFE..KGB10200502-201406

23270FRING, O(FOR PULSATION DAMPER)

main90301-07033i1KRFE..KGB10200502-201406

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-40010i1KRFE..KGB10200502-201406

23291INSULATOR, INJECTOR VIBRATION

main23291-0J020i1KRFE..KGB10200502-201406

(L)

main23291-23010i1KRFE..KGB10200502-201202

(J)

23804PIPE SUB-ASSY, FUEL, NO.4

main23804-40010i1KRFE..KGB10200502-201406

23814BPIPE, FUEL DELIVERY

main23814-0Q010i1KRFE..KGB10200502-201406

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1KRFE..KGB10200705-201202

main23841-28010i1KRFE..KGB10200502-200704

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-0Q010i1KRFE..KGB10200502-201202

23901TUBE SUB-ASSY, FUEL

main23901-0Q010i1KRFE..KGB10200502-201202

7701FUEL TANK & TUBE

→ Go to FIG 77-01

90105W0143

main90105-W0143

90119W0030

main90119-W0030

90119W0103

main90119-W0103

90119W0135

main90119-W0135

9155180645

main91551-80645

9167100835

main91671-00835

9167180616

main91671-80616

9167180620

main91671-80620

24 parts on this diagram · 1 diagram in section
